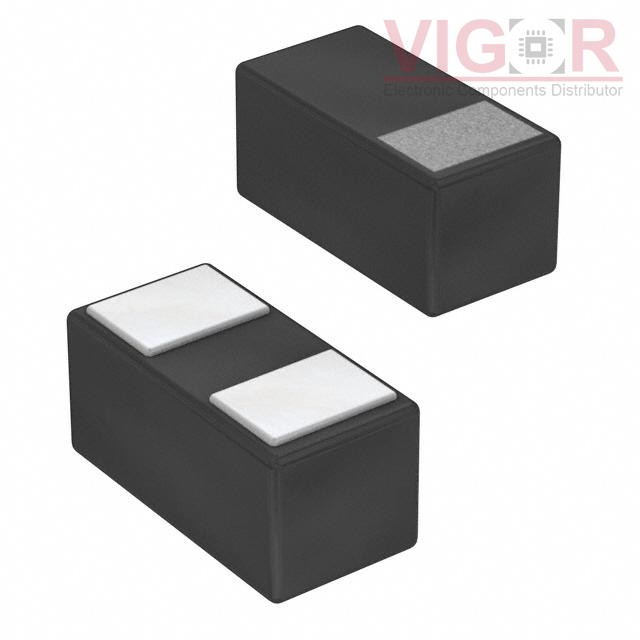

ESDA8P80-1U1M

Part No :: ESDA8P80-1U1M

Manufacturer: STMicroelectronics

Description: TVS DIODE 6.3V 13.2V 1610

Catalog: TVS - Diodes

DataSheet: ESDA8P80-1U1M PDF

Availability: 0 pieces

Current price of ESDA8P80-1U1M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESDA8P80-1U1M Specifications

Type	Description
Series:	ESDA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	6.3V
Voltage - Breakdown (Min):	6.9V
Voltage - Clamping (Max) @ Ipp:	13.2V
Current - Peak Pulse (10/1000µs):	80A (8/20µs)
Power - Peak Pulse:	1100W (1.1kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	0603 (1610 Metric)
Supplier Device Package:	1610
