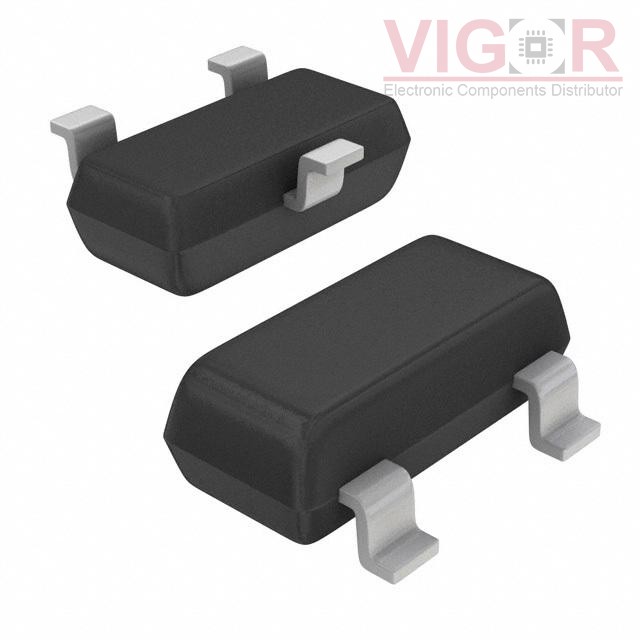

SZESD7272LT1G

Part No :: SZESD7272LT1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 1946667

Description: 24V ASYMMETRIC IN SOT23

Catalog: TVS - Diodes

DataSheet: SZESD7272LT1G PDF

Country of origin: -

Date code: -

SZESD7272LT1G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	2
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	24V (Max)
Voltage - Breakdown (Min):	27V
Voltage - Clamping (Max) @ Ipp:	10.5V (Typ)
Current - Peak Pulse (10/1000µs):	16A
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	0.8pF @ 1MHz
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23-3 (TO-236)
