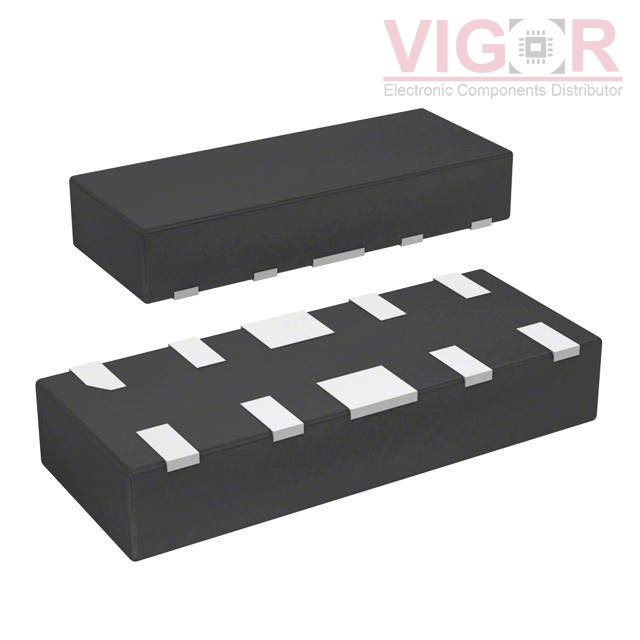

ESD7504MUTAG

Part No :: ESD7504MUTAG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TVS DIODE 3.3V 10UDFN

Catalog: TVS - Diodes

DataSheet: ESD7504MUTAG PDF

Availability: 3 pieces

Current price of ESD7504MUTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESD7504MUTAG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Steering (Rail to Rail)
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	3.3V (Max)
Voltage - Breakdown (Min):	4V
Voltage - Clamping (Max) @ Ipp:	-
Current - Peak Pulse (10/1000µs):	-
Power - Peak Pulse:	-
Power Line Protection:	No
Applications:	HDMI
Capacitance @ Frequency:	0.55pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-UFDFN
Supplier Device Package:	10-UDFN (2.5x1)
