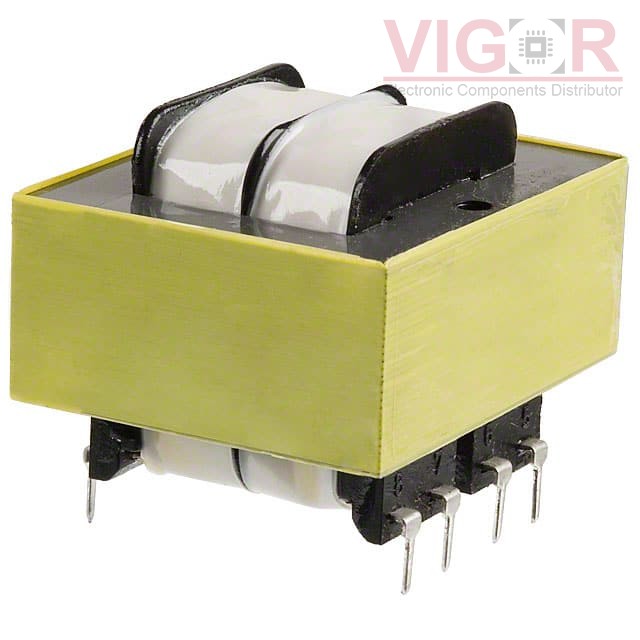

3FS-524

Part No :: 3FS-524

Manufacturer: Tamura

VIGOR # :: 1984055

Description: PWR XFMR LAMINATED 12VA TH

Catalog: Power Transformers

DataSheet: 3FS-524 PDF

Country of origin: -

Date code: -

3FS-524 Specifications

Type	Description
Series:	3FS-5xx
Package:	Tube
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V
Voltage - Secondary (Full Load):	Parallel 12V, Series 24V
Current - Output (Max):	Parallel 1A, Series 500mA
Primary Winding(s):	Single
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	12VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	48.50mm L x 41.52mm W
Height - Seated (Max):	38.00mm
Voltage - Isolation:	2500Vrms
Weight:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 909

Shipped from

HK warehouse

Expected Shipping Date

May 04 - May 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$11.4600~~	~~$11.46~~
10	~~$8.4620~~	~~$84.62~~
25	~~$7.8114~~	~~$195.29~~
50	~~$7.5510~~	~~$377.55~~
100	~~$7.3426~~	~~$734.26~~
250	~~$7.2384~~	~~$1 809.61~~
500	~~$7.1603~~	~~$3 580.16~~
1000	~~$7.0301~~	~~$7 030.12~~

Current price of 3FS-524 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
