23KM-K762-99V

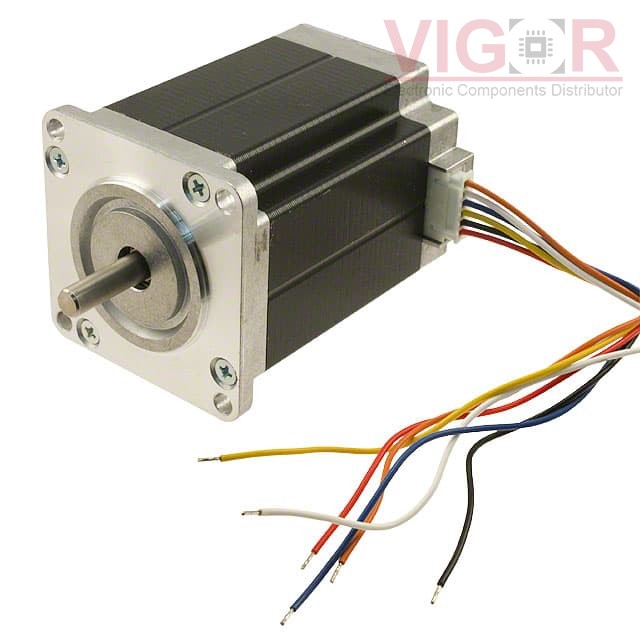

Product image
Product thumb
Part No :

23KM-K762-99V

Manufacturer
NMB Technologies Corp.
VIGOR # :

2680767

Description
STEP MOTOR HYBRID DUAL SHAFT 24V
Catalog
Stepper Motors
DataSheet
23KM-K762-99V PDF
Country of origin
-
Date code
-
ads
23KM-K762-99V Specifications
Type Description
Series:23KM
Package:Bulk
Part Status:Active
Type:Hybrid, Dual Shaft
Coil Type:Unipolar
Voltage - Rated:24VDC
Current Rating (Amps):1 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):198.28 / 1400
Size / Dimension:Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size:23
Diameter - Shaft:0.250" (6.35mm)
Length - Shaft and Bearing:0.984" (25.00mm)
Mounting Hole Spacing:1.856" (47.14mm)
Termination Style:Wire Leads with Connector
Operating Temperature:-10°C ~ 50°C
Coil Resistance:8.6 Ohms
Features:Flatted Shaft
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Sep 18 - Sep 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $82.3500 $82.35
5 $80.9100 $404.55
10 $79.4640 $794.64
25 $78.0196 $1 950.49
50 $76.8636 $3 843.18
100 $75.1299 $7 512.99

Current price of 23KM-K762-99V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
