AZ2280-1C-277AEF

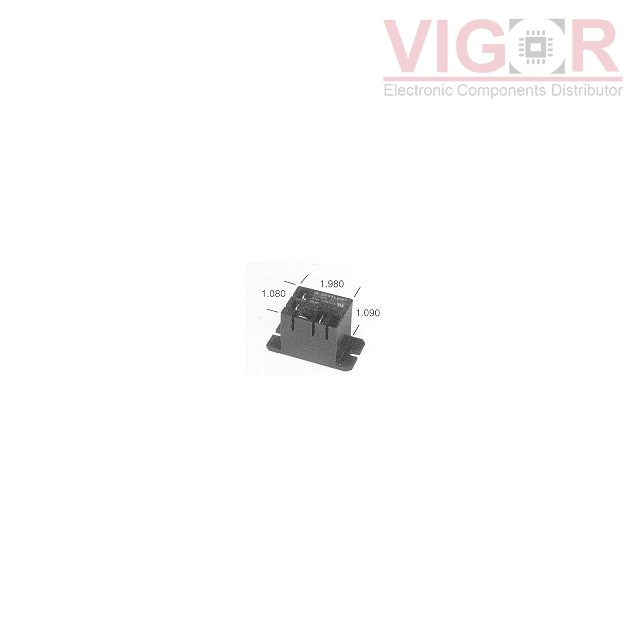

Product image
Product thumb
Part No :

AZ2280-1C-277AEF

Manufacturer
American Zettler
VIGOR # :

2696379

Description
40A MINIATURE POWER RELAY
Catalog
Power Relays, Over 2 Amps
DataSheet
AZ2280-1C-277AEF PDF
Country of origin
-
Date code
-
ads
AZ2280-1C-277AEF Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:277VAC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC, 28VDC - Max
Coil Current:18.5 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187"/0.250"
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:235.4 VAC
Must Release Voltage:55.4 VAC
Operate Time:15 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 60°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 11 - Jan 15 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.75 $2.75

Current price of AZ2280-1C-277AEF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
