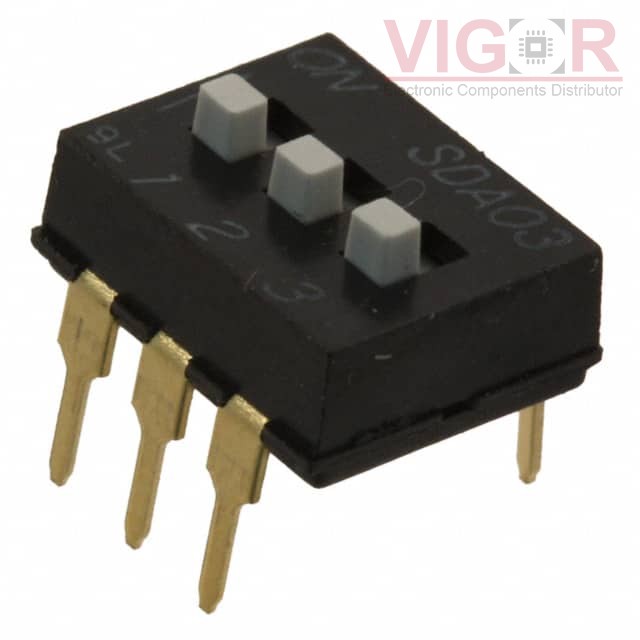

SDA03H1BD

Part No :: SDA03H1BD

Manufacturer: C&K

VIGOR # :: 2704605

Description: SWITCH SLIDE DIP SPST 25MA 24V

Catalog: DIP Switches

DataSheet: SDA03H1BD PDF

Country of origin: -

Date code: -

SDA03H1BD Specifications

Type	Description
Series:	SDA
Package:	Tube
Part Status:	Active
Circuit:	SPST
Number of Positions:	3
Current Rating (Amps):	25mA
Voltage Rating:	24VDC
Actuator Type:	Slide (Standard)
Actuator Level:	Raised
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Height Above Board:	0.228" (5.80mm)
Mounting Type:	Through Hole
Termination Style:	PC Pin
Pitch:	0.100" (2.54mm), Full
Washable:	No
Features:	-
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 22 - Apr 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3400~~	~~$1.34~~
10	~~$1.3097~~	~~$13.10~~
45	~~$1.2344~~	~~$55.55~~
90	~~$1.1589~~	~~$104.30~~
135	~~$1.1084~~	~~$149.64~~
270	~~$1.0581~~	~~$285.68~~
540	~~$0.9573~~	~~$516.94~~
1035	~~$0.8817~~	~~$912.58~~
5040	~~$0.7180~~	~~$3 618.57~~

Current price of SDA03H1BD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

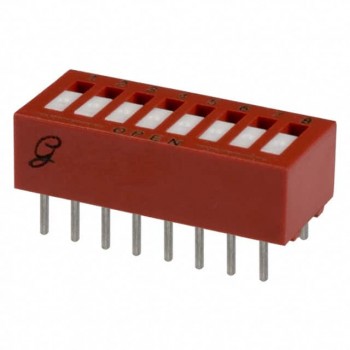

76RSB08T

SWITCH ROCKER DIP SPST 150MA 30V

219-2MSTF

SWITCH SLIDE DIP SPST 100MA 20V

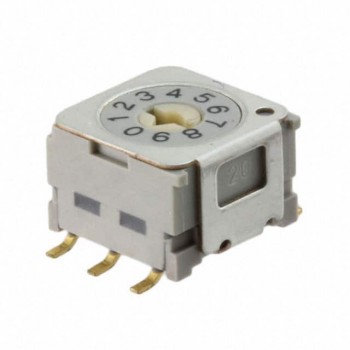

ND3FR10P-R
