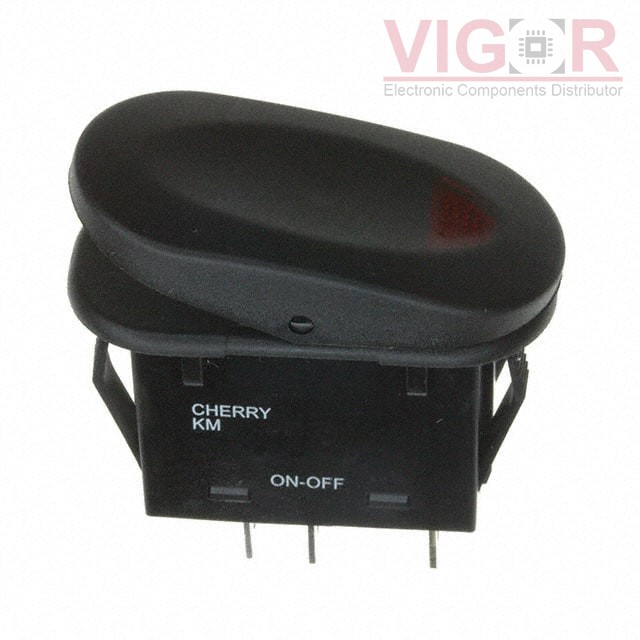

KMD2AMB7BBBNR1

Part No :: KMD2AMB7BBBNR1

Manufacturer: Waldom Electronics

VIGOR # :: 2705057

Description: SWITCH ROCKER SPST 20A 125V

Catalog: Rocker Switches

DataSheet: KMD2AMB7BBBNR1 PDF

Country of origin: -

Date code: -

KMD2AMB7BBBNR1 Specifications

Type	Description
Series:	KM
Package:	Bulk
Part Status:	Active
Mounting Type:	Panel Mount, Snap-In
Circuit:	SPST
Switch Function:	On-Off
Current Rating (Amps):	20A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flat - Illuminated
Color - Actuator/Cap:	Black
Actuator Marking:	No Marking
Illumination Type, Color:	LED, Red
Illumination Voltage (Nominal):	14 VDC
Termination Style:	Quick Connect - 0.250" (6.3mm)
Ingress Protection:	IP56 - Dust Protected, Water Resistant
Features:	-
Panel Cutout Dimensions:	Rectangular - 36.60mm x 21.20mm
Operating Temperature:	-20°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 486

Shipped from

HK warehouse

Expected Shipping Date

May 04 - May 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.8700~~	~~$8.87~~
500	~~$6.7200~~	~~$3 360.00~~

Current price of KMD2AMB7BBBNR1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
