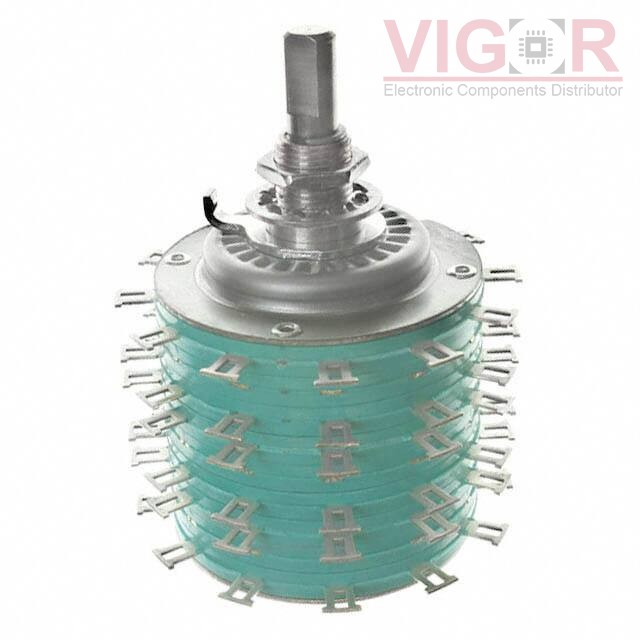

C7D0323N

Part No :: C7D0323N

Manufacturer: Electroswitch

VIGOR # :: 2717852

Description: SWITCH ROTARY 23POS 500MA 125V

Catalog: Rotary Switches

DataSheet: C7D0323N PDF

Country of origin: -

Date code: -

C7D0323N Specifications

Type	Description
Series:	C7
Package:	Bulk
Part Status:	Active
Number of Positions:	23
Index Stops:	Fixed
Number of Decks:	3
Number of Poles per Deck:	1
Circuit per Deck:	SP23T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	500mA (AC), 1A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	14.29mm
Angle of Throw:	15°
Contact Material:	Brass
Contact Finish:	Silver
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	44.38mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jun 28 - Jul 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$96.9900~~	~~$96.99~~

Current price of C7D0323N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
