UF3SC120016K3S

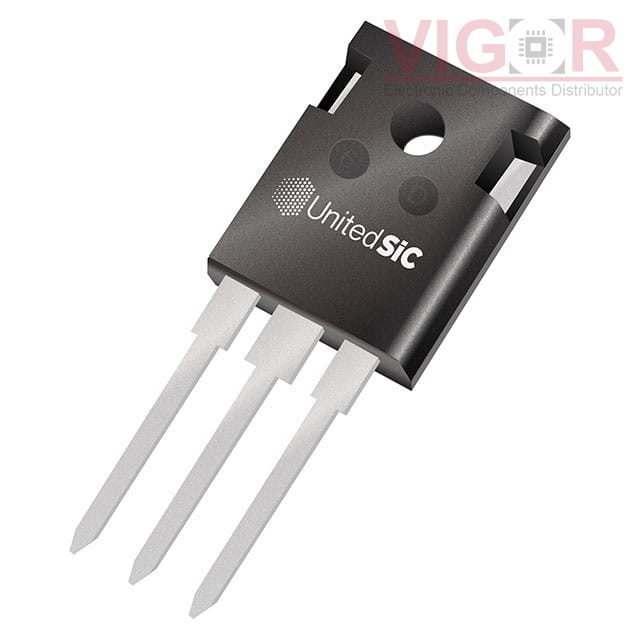

Image is for reference,
please contact us to get the real picture

Part No :: UF3SC120016K3S

Manufacturer: UnitedSiC

Description: SICFET N-CH 1200V 107A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: UF3SC120016K3S PDF

Availability: 265 pieces

Unit Price: ~~$46.09000~~

Current price of UF3SC120016K3S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UF3SC120016K3S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	107A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	12V
Rds On (Max) @ Id, Vgs:	21mOhm @ 50A, 12V
Vgs(th) (Max) @ Id:	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	218 nC @ 15 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	7824 pF @ 800 V
FET Feature:	-
Power Dissipation (Max):	517W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-3
Package / Case:	TO-247-3
