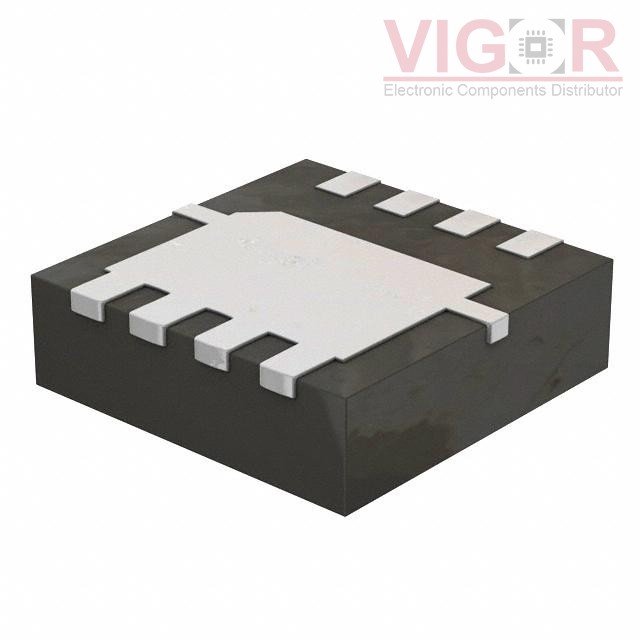

CSD16411Q3

Part No :: CSD16411Q3

Manufacturer: Texas Instruments

Description: MOSFET N-CH 25V 14A/56A 8VSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD16411Q3 PDF

Availability: 16686 pieces

Current price of CSD16411Q3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD16411Q3 Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	14A (Ta), 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	10mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	3.8 nC @ 4.5 V
Vgs (Max):	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds:	570 pF @ 12.5 V
FET Feature:	-
Power Dissipation (Max):	2.7W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSON (3.3x3.3)
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
