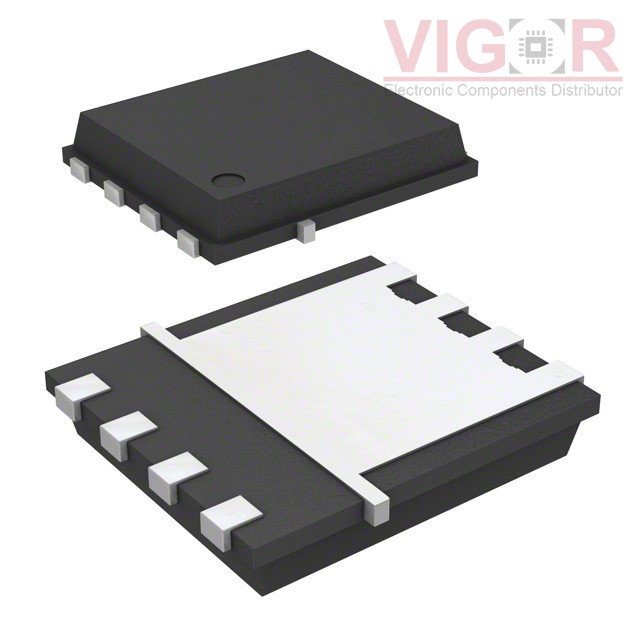

CSD18504Q5A

Part No :: CSD18504Q5A

Manufacturer: Texas Instruments

VIGOR # :: 2895293

Description: MOSFET N-CH 40V 15A/50A 8VSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD18504Q5A PDF

Country of origin: -

Date code: -

CSD18504Q5A Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	15A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	6.6mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	19 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1656 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	3.1W (Ta), 77W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSONP (5x6)
Package / Case:	8-PowerTDFN
