TPH3212PS

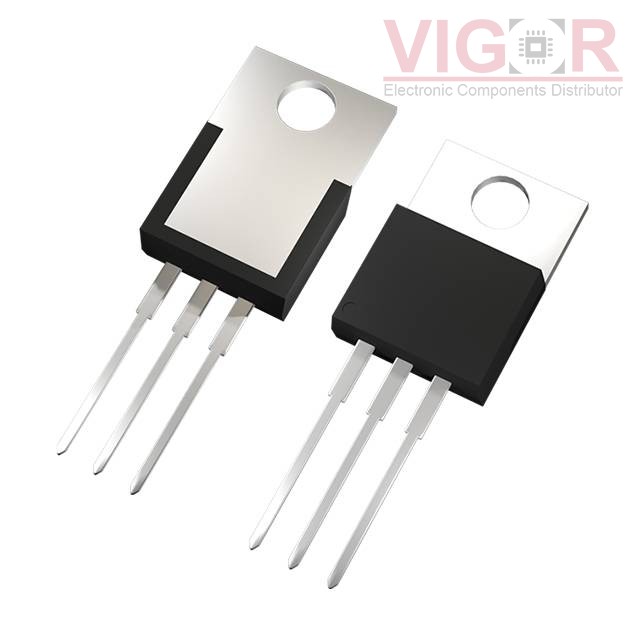

Image is for reference,
please contact us to get the real picture

Part No :: TPH3212PS

Manufacturer: Transphorm

Description: GANFET N-CH 650V 27A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPH3212PS PDF

Availability: 559 pieces

Unit Price: ~~$14.65000~~

Current price of TPH3212PS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPH3212PS Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Last Time Buy
FET Type:	N-Channel
Technology:	GaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	27A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	72mOhm @ 17A, 8V
Vgs(th) (Max) @ Id:	2.6V @ 400uA
Gate Charge (Qg) (Max) @ Vgs:	14 nC @ 8 V
Vgs (Max):	±18V
Input Capacitance (Ciss) (Max) @ Vds:	1130 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	104W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3
