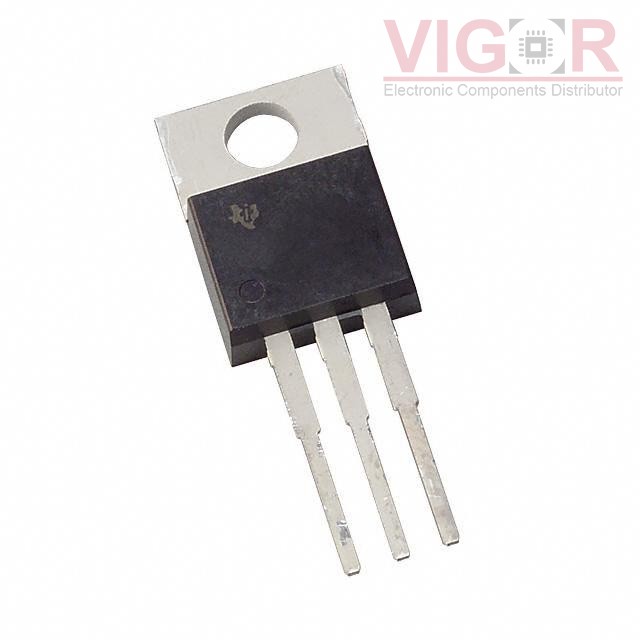

CSD19506KCS

Part No :: CSD19506KCS

Manufacturer: Texas Instruments

Description: MOSFET N-CH 80V 100A TO220-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD19506KCS PDF

Availability: 670 pieces

Current price of CSD19506KCS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD19506KCS Specifications

Type	Description
Series:	NexFET™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	2.3mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:	3.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	156 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	12200 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	375W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220-3
Package / Case:	TO-220-3
