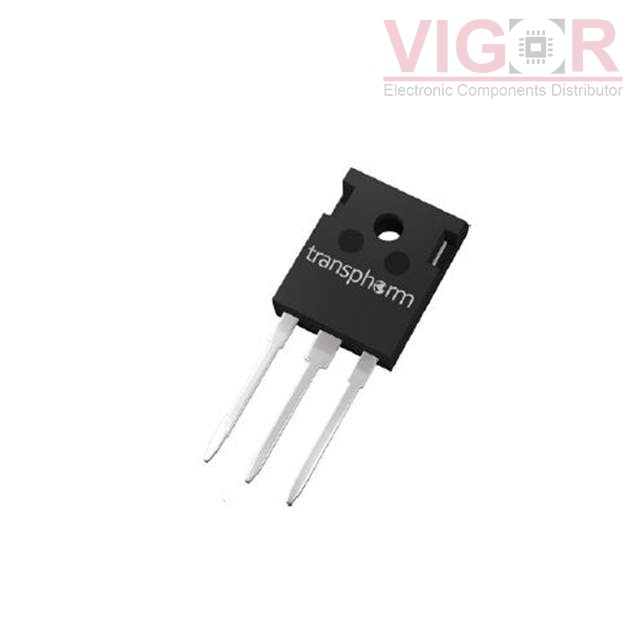

TP65H050WS

Image is for reference,
please contact us to get the real picture

Part No :: TP65H050WS

Manufacturer: Transphorm

Description: GANFET N-CH 650V 34A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TP65H050WS PDF

Availability: 451 pieces

Unit Price: ~~$17.05000~~

Current price of TP65H050WS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TP65H050WS Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	GaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	12V
Rds On (Max) @ Id, Vgs:	60mOhm @ 22A, 10V
Vgs(th) (Max) @ Id:	4.8V @ 700µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1000 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	119W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-3
Package / Case:	TO-247-3
