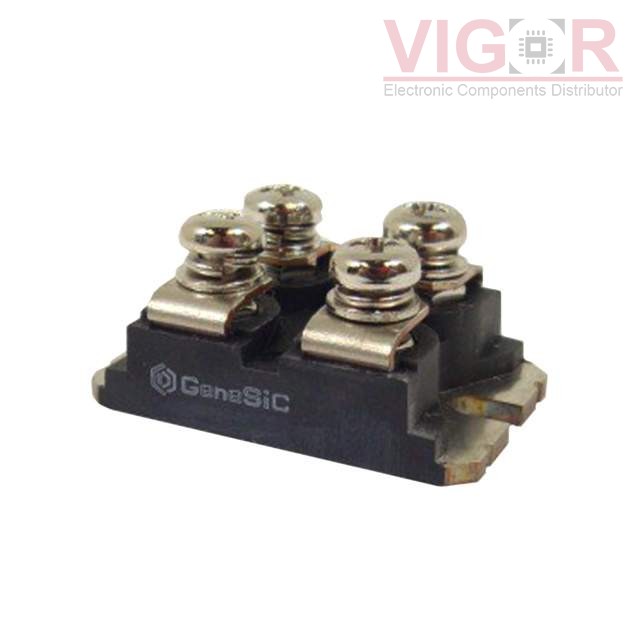

MBR2X100A120

Part No :: MBR2X100A120

Manufacturer: GeneSiC Semiconductor

VIGOR # :: 2949151

Description: DIODE SCHOTTKY 120V 100A SOT227

Catalog: Diodes - Rectifiers - Arrays

DataSheet: MBR2X100A120 PDF

Country of origin: -

Date code: -

MBR2X100A120 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	120 V
Current - Average Rectified (Io) (per Diode):	100A
Voltage - Forward (Vf) (Max) @ If:	880 mV @ 100 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	3 mA @ 120 V
Operating Temperature - Junction:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	SOT-227-4, miniBLOC
Supplier Device Package:	SOT-227

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 17 - Jan 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$37.63~~	~~$37.63~~
52	~~$37.63~~	~~$1 956.72~~

Current price of MBR2X100A120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V60DM120CHM3/I

DIODE SCHOTTKY 120V 30A TO263AC

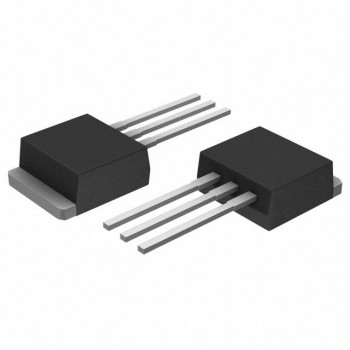

MBRB3045CT-1G
