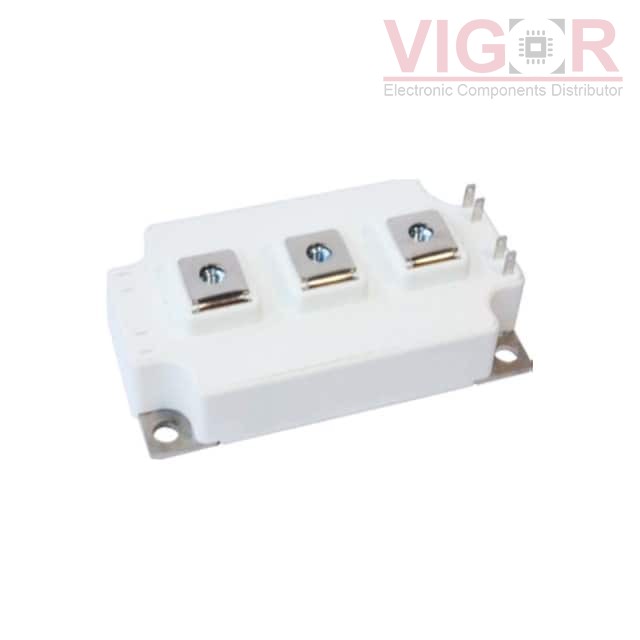

GSID200A120S3B1

Image is for reference,
please contact us to get the real picture

Part No :: GSID200A120S3B1

Manufacturer: SemiQ

Description: IGBT MODULE 1200V 400A 1595W D3

Catalog: Transistors - IGBTs - Modules

DataSheet: GSID200A120S3B1 PDF

Availability: 0 pieces

Unit Price: ~~$91.36750~~

Current price of GSID200A120S3B1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

GSID200A120S3B1 Specifications

Type	Description
Series:	Amp+™
Package:	Bulk
Part Status:	Active
IGBT Type:	-
Configuration:	2 Independent
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	400 A
Power - Max:	1595 W
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 200A
Current - Collector Cutoff (Max):	1 mA
Input Capacitance (Cies) @ Vce:	20 nF @ 25 V
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Chassis Mount
Package / Case:	D-3 Module
Supplier Device Package:	D3

Please confirm the specifications of the products when ordering.
