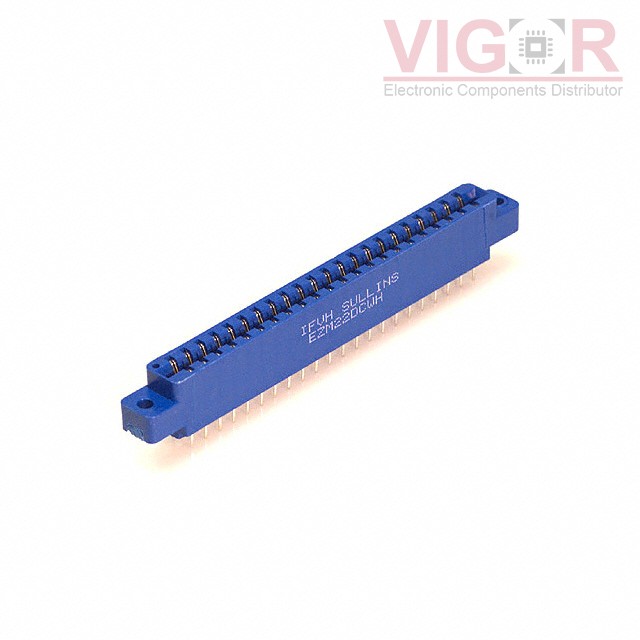

EBM22DCWH

Part No :: EBM22DCWH

Manufacturer: Sullins Connector Solutions

Description: CONN EDGE DUAL FMALE 44POS 0.156

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: EBM22DCWH PDF

Availability: 0 pieces

Current price of EBM22DCWH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EBM22DCWH Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	22
Number of Positions:	44
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.156" (3.96mm)
Read Out:	Dual
Features:	-
Mounting Type:	Through Hole
Termination:	Solder
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	Hairpin Bellows
Color:	Blue
Flange Feature:	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature:	-65°C ~ 125°C
