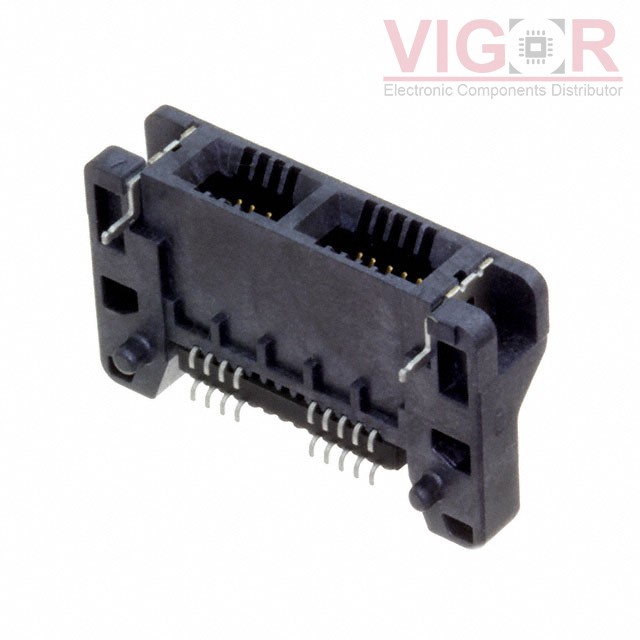

HSEC8-109-01-L-RA-L2

Part No :: HSEC8-109-01-L-RA-L2

Manufacturer: Samtec, Inc.

VIGOR # :: 2998513

Description: CONN EDGE DUAL FMALE 18POS 0.031

Catalog: Card Edge Connectors - Edgeboard Connectors

DataSheet: HSEC8-109-01-L-RA-L2 PDF

Country of origin: -

Date code: -

HSEC8-109-01-L-RA-L2 Specifications

Type	Description
Series:	Edge Rate™ HSEC8
Package:	Tray
Part Status:	Active
Card Type:	Non Specified - Dual Edge
Gender:	Female
Number of Positions/Bay/Row:	9
Number of Positions:	18
Card Thickness:	0.062" (1.57mm)
Number of Rows:	2
Pitch:	0.031" (0.80mm)
Read Out:	Dual
Features:	Latches
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Contact Type:	Cantilever
Color:	Black
Flange Feature:	-
Operating Temperature:	-55°C ~ 125°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 100

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.7900~~	~~$6.79~~
10	~~$6.5109~~	~~$65.11~~
25	~~$5.9450~~	~~$148.62~~
50	~~$5.6617~~	~~$283.08~~
100	~~$5.3786~~	~~$537.86~~
250	~~$4.8124~~	~~$1 203.11~~
500	~~$4.5294~~	~~$2 264.68~~
1000	~~$3.9632~~	~~$3 963.19~~
2500	~~$3.7650~~	~~$9 412.55~~

Current price of HSEC8-109-01-L-RA-L2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

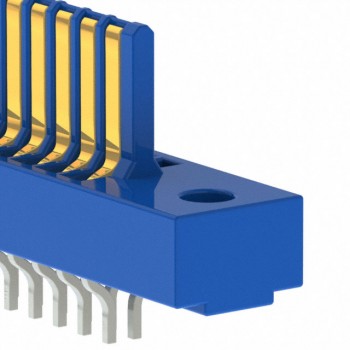

EBC10MMRD

CONN CARDEDGE MALE 20POS 0.100

EBC25DCAS-S189

CONN EDGE DUAL FMALE 50POS 0.100

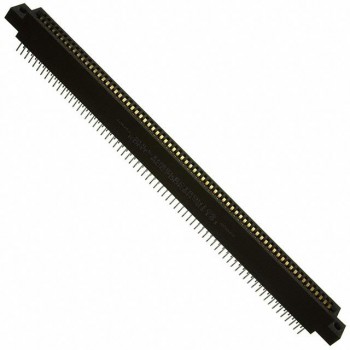

ACC70DKSH-S1191
