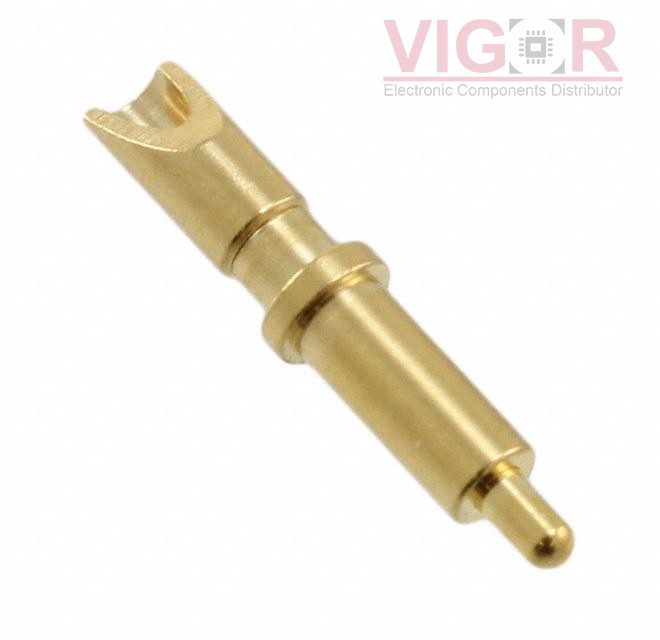

0854-0-15-20-82-14-11-0

Part No :: 0854-0-15-20-82-14-11-0

Manufacturer: Mill-Max

Description: CONTACT SPRING LOADED IN-LINE

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 0854-0-15-20-82-14-11-0 PDF

Availability: 93669 pieces

Current price of 0854-0-15-20-82-14-11-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0854-0-15-20-82-14-11-0 Specifications

Type	Description
Series:	0854
Package:	Bulk
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Through Hole, Solder Cup
Maximum Working Height:	0.339" (8.61mm)
Recommended Working Height:	0.294" (7.47mm)
Minimum Working Height:	0.249" (6.32mm)
Pad Layout Dimension:	Circular - 0.125" (3.18mm) (TH)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	120gf
Plunger Size:	0.050" (1.27mm) Dia
Features:	-
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)
