P70-1100045R

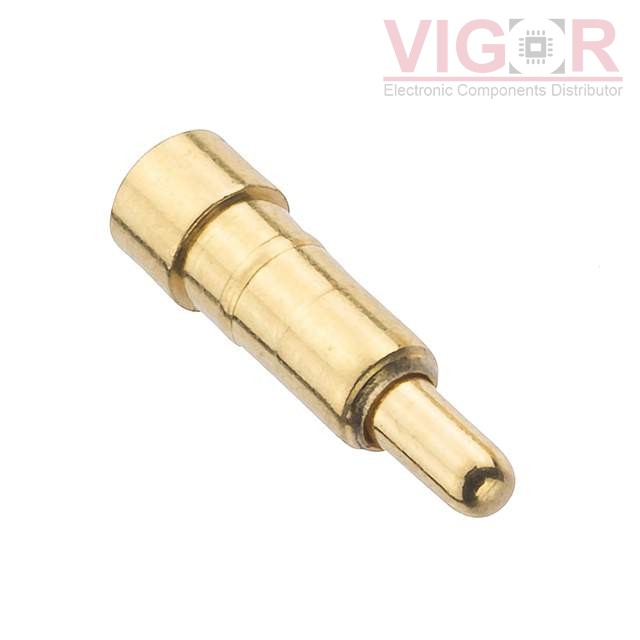

Product image
Product thumb
Part No :

P70-1100045R

Manufacturer
Harwin
VIGOR # :

3014374

Description
CONTACT SPRING LOADED SMD GOLD
Catalog
Contacts, Spring Loaded (Pogo Pins), and Pressure
DataSheet
P70-1100045R PDF
Country of origin
-
Date code
-
ads
P70-1100045R Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Contact Type:Sleeve & Plunger (Pogo Pins)
Mounting Type:Surface Mount
Maximum Working Height:0.209" (5.30mm)
Recommended Working Height:0.197" (5.00mm)
Minimum Working Height:0.185" (4.70mm)
Pad Layout Dimension:Circular - 0.079" (2.00mm)
Operating Force - Initial:-
Operating Force - Mid Compression:124.41gf
Plunger Size:0.035" (0.90mm) Dia
Features:-
Mating Cycles:10000
Contact Material:Brass
Contact Finish:Gold
Contact Finish Thickness:16.0µin (0.41µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 3382
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.66 $0.66
650 $0.41 $266.50
1300 $0.34 $439.72
1950 $0.33 $639.60
3250 $0.31 $999.38
6500 $0.30 $1 932.12
16250 $0.27 $4 430.56
32500 $0.27 $8 661.25

Current price of P70-1100045R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
