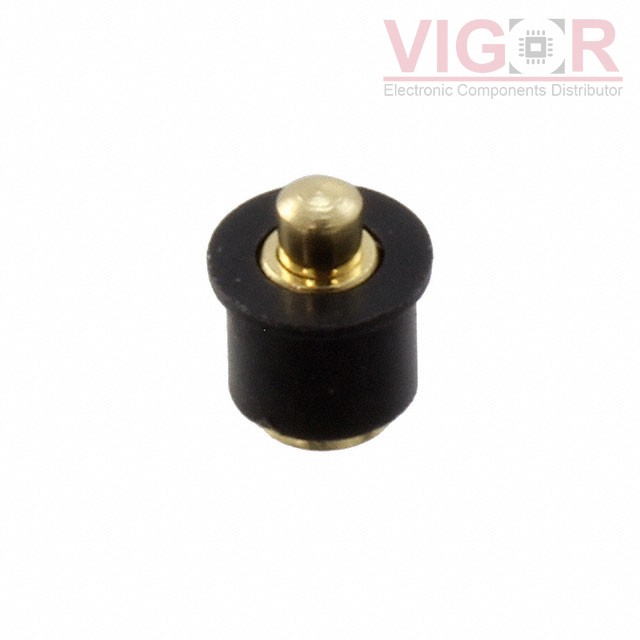

807-22-001-30-001101

Part No :: 807-22-001-30-001101

Manufacturer: Mill-Max

Description: CONTACT SPRING LOADED SMD GOLD

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 807-22-001-30-001101 PDF

Availability: 1084 pieces

Current price of 807-22-001-30-001101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

807-22-001-30-001101 Specifications

Type	Description
Series:	807
Package:	Bulk
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Surface Mount
Maximum Working Height:	0.137" (3.48mm)
Recommended Working Height:	0.117" (2.98mm)
Minimum Working Height:	-
Pad Layout Dimension:	Circular - 0.072" (1.83mm)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	60gf
Plunger Size:	0.042" (1.07mm) Dia
Features:	Pick and Place
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)
