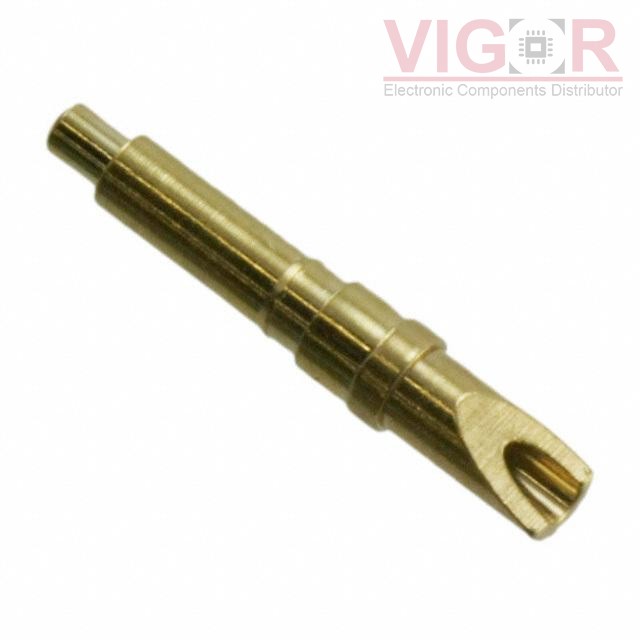

0933-0-15-20-75-14-11-0

Part No :: 0933-0-15-20-75-14-11-0

Manufacturer: Mill-Max

Description: CONTACT SPRING LOADED T/H GOLD

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 0933-0-15-20-75-14-11-0 PDF

Availability: 19614 pieces

Current price of 0933-0-15-20-75-14-11-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0933-0-15-20-75-14-11-0 Specifications

Type	Description
Series:	0933
Package:	Bulk
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Through Hole, Solder Cup
Maximum Working Height:	0.308" (7.83mm)
Recommended Working Height:	0.281" (7.13mm)
Minimum Working Height:	0.253" (6.43mm)
Pad Layout Dimension:	Circular - 0.078" (1.98mm) (TH)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	60gf
Plunger Size:	0.042" (1.07mm) Dia
Features:	24 AWG
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)
