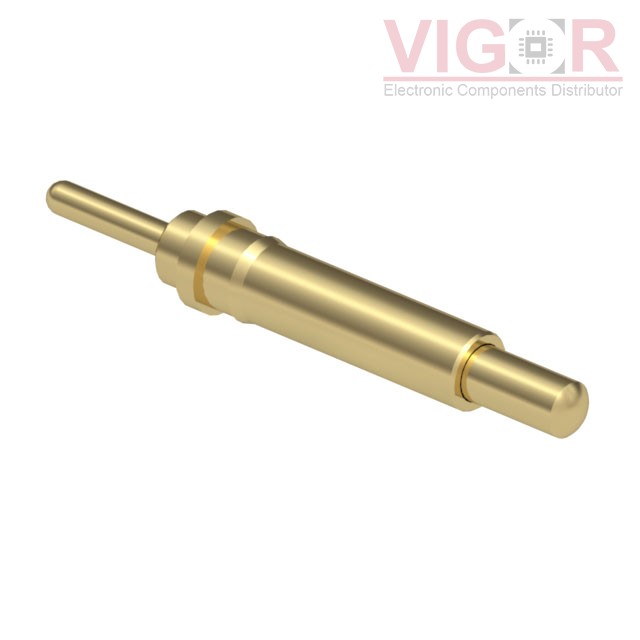

0914-2-15-20-77-14-11-0

Part No :: 0914-2-15-20-77-14-11-0

Manufacturer: Mill-Max

Description: CONTACT SPRING LOADED T/H GOLD

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 0914-2-15-20-77-14-11-0 PDF

Availability: 10974 pieces

Current price of 0914-2-15-20-77-14-11-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0914-2-15-20-77-14-11-0 Specifications

Type	Description
Series:	0914
Package:	Bulk
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Through Hole
Maximum Working Height:	0.334" (8.48mm)
Recommended Working Height:	0.289" (7.34mm)
Minimum Working Height:	0.244" (6.19mm)
Pad Layout Dimension:	Circular - 0.072" (1.83mm) (TH)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	60gf
Plunger Size:	0.042" (1.07mm) Dia
Features:	-
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)

Please confirm the specifications of the products when ordering.
