807-22-001-30-002101

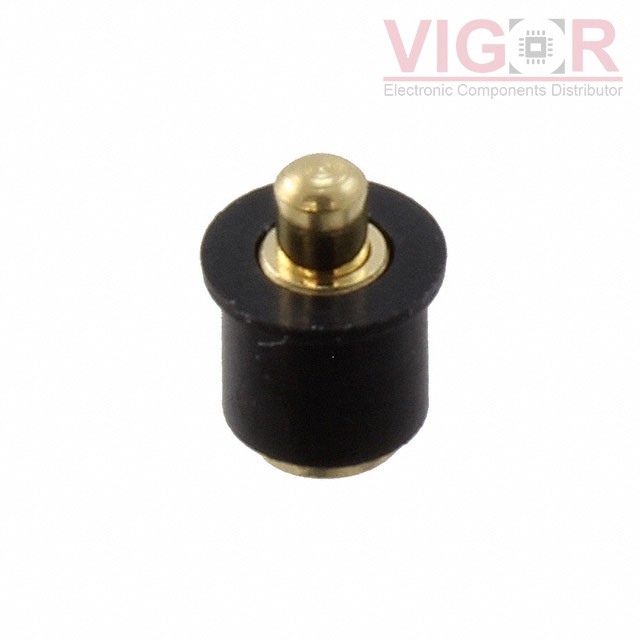

Product image
Product thumb
Part No :

807-22-001-30-002101

Manufacturer
Mill-Max
VIGOR # :

3014617

Description
CONTACT SPRING LOADED SMD GOLD
Catalog
Contacts, Spring Loaded (Pogo Pins), and Pressure
DataSheet
807-22-001-30-002101 PDF
Country of origin
-
Date code
-
ads
807-22-001-30-002101 Specifications
Type Description
Series:807
Package:Bulk
Part Status:Active
Contact Type:Sleeve & Plunger (Pogo Pins)
Mounting Type:Surface Mount
Maximum Working Height:0.155" (3.94mm)
Recommended Working Height:0.135" (3.44mm)
Minimum Working Height:-
Pad Layout Dimension:Circular - 0.072" (1.83mm)
Operating Force - Initial:25gf
Operating Force - Mid Compression:60gf
Plunger Size:0.042" (1.07mm) Dia
Features:Pick and Place
Mating Cycles:1000000
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:20.0µin (0.51µm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1247
Shipped from
HK warehouse
Expected Shipping Date
Jan 16 - Jan 20 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.80 $0.80
10 $0.75 $7.47
25 $0.67 $16.81
50 $0.60 $29.88
100 $0.57 $57.27
250 $0.52 $130.73
500 $0.50 $249.00
1000 $0.41 $410.85
2500 $0.37 $933.75

Current price of 807-22-001-30-002101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
