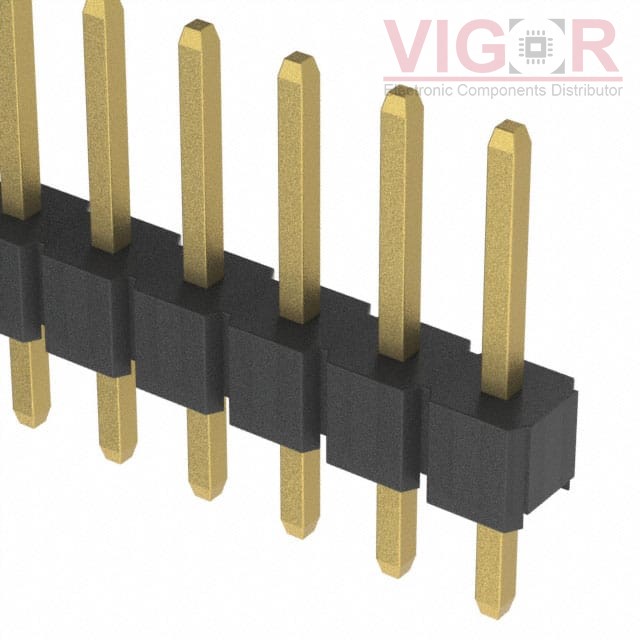

PH1-18-UA

Part No :: PH1-18-UA

Manufacturer: Adam Tech

Description: CONN HEADER VERT 18POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: PH1-18-UA PDF

Availability: 1113 pieces

Unit Price: ~~$0.28000~~

Current price of PH1-18-UA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PH1-18-UA Specifications

Type	Description
Series:	PH1
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	18
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.236" (6.00mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.454" (11.54mm)
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	250VAC
