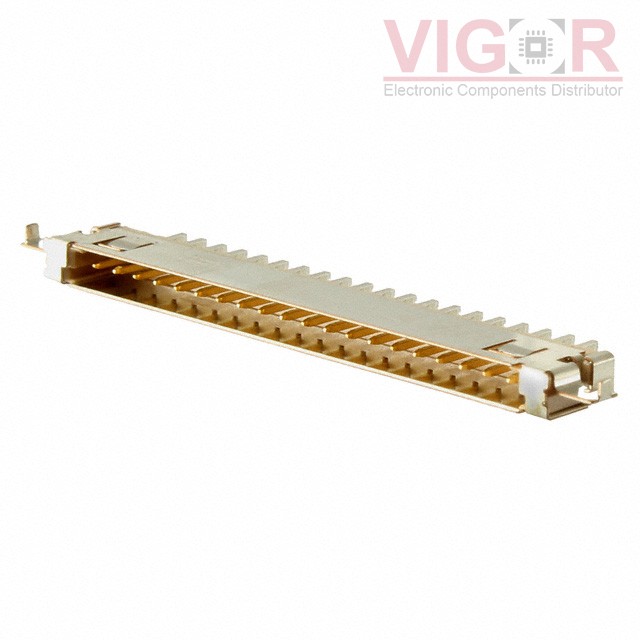

FI-SEB20P-HF10E

Part No :: FI-SEB20P-HF10E

Manufacturer: JAE Electronics

VIGOR # :: 3022119

Description: CONN HEADER BRD EDGE 20P 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FI-SEB20P-HF10E PDF

Current price of FI-SEB20P-HF10E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FI-SEB20P-HF10E Specifications

Type	Description
Series:	FI
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	20
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Board Edge, Cutout; Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.077" (1.95mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin or Tin-Alloy
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Shielded, Solder Retention
Operating Temperature:	-40°C ~ 80°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	1A per Contact
Voltage Rating:	200V
