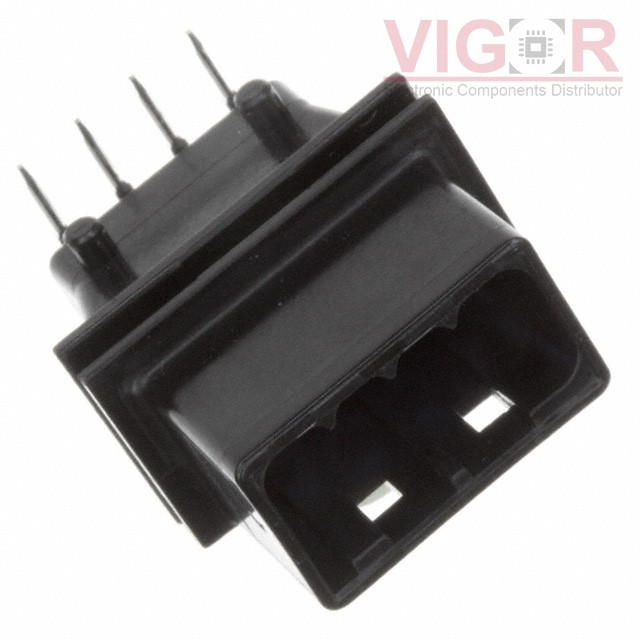

MX44004NF1

Product image
Product thumb
Part No :

MX44004NF1

Manufacturer
JAE Electronics
VIGOR # :

3033284

Description
CONN HEADER BRD EDGE 4POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
MX44004NF1 PDF
Country of origin
-
Date code
-
ads
MX44004NF1 Specifications
Type Description
Series:MX44
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:0.465" (11.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 125°C
Ingress Protection:Waterproof
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2427
Shipped from
HK warehouse
Expected Shipping Date
May 06 - May 10 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $6.2400 $6.24
10 $5.9856 $59.86
100 $4.9880 $498.80
900 $3.8657 $3 479.10
1800 $3.4916 $6 284.83

Current price of MX44004NF1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

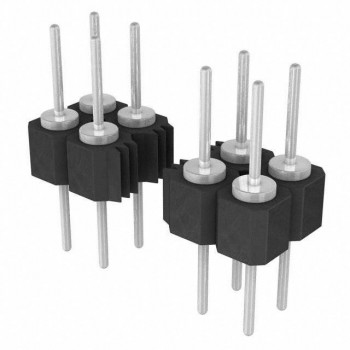

TD-127-T-A

TD-127-T-A

CONN HEADER VERT 54POS 2.54MM

TSM-140-01-S-DV-P

TSM-140-01-S-DV-P

CONN HEADER SMD 80POS 2.54MM

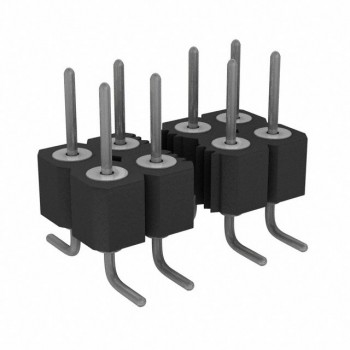

832-80-016-30-001191
