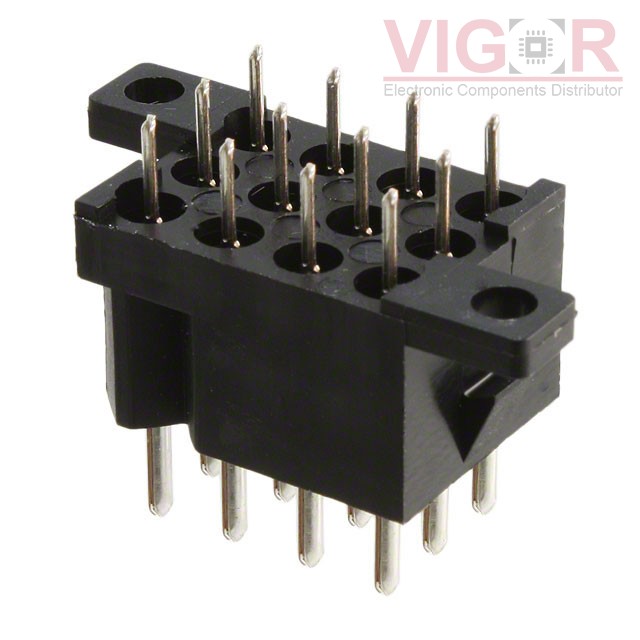

SMS12RE-4TR29

Part No :: SMS12RE-4TR29

Manufacturer: Souriau-Sunbank by Eaton

Description: CONN HEADER VERT 12POS 5.08MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SMS12RE-4TR29 PDF

Availability: 3 pieces

Current price of SMS12RE-4TR29 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SMS12RE-4TR29 Specifications

Type	Description
Series:	SMS
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	12
Number of Rows:	4
Row Spacing - Mating:	0.200" (5.08mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.280" (7.11mm)
Contact Length - Post:	0.173" (4.40mm)
Overall Contact Length:	0.972" (24.70mm)
Insulation Height:	0.520" (13.20mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	118.1µin (3.00µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyester, Glass Filled
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	IP40
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	5A
Voltage Rating:	-
