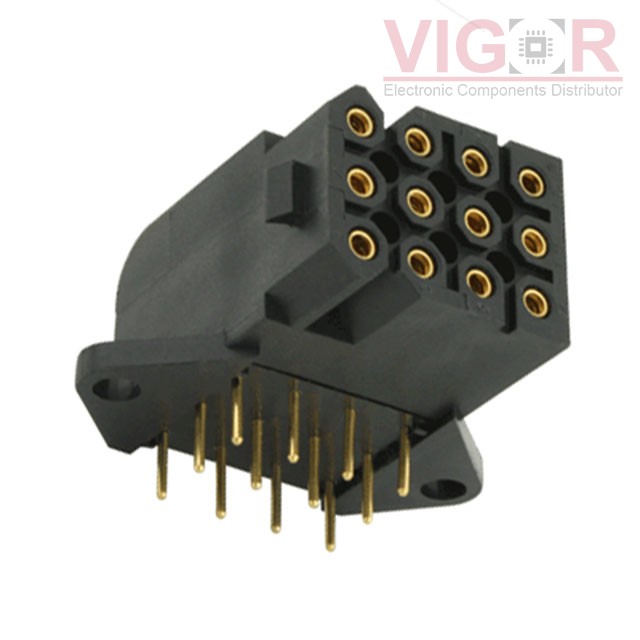

SMS12GE5

Part No :: SMS12GE5

Manufacturer: Souriau-Sunbank by Eaton

Description: CONN RCPT 12POS 0.2 GOLD PCB R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SMS12GE5 PDF

Availability: 79 pieces

Current price of SMS12GE5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SMS12GE5 Specifications

Type	Description
Series:	SMS
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.200" (5.08mm)
Number of Rows:	4
Row Spacing - Mating:	0.200" (5.08mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	16.0µin (0.41µm)
Insulation Color:	Black
Insulation Height:	0.677" (17.20mm)
Contact Length - Post:	0.177" (4.50mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	-
Mated Stacking Heights:	-
Ingress Protection:	IP40
Features:	Mounting Flange
Current Rating (Amps):	7.5A
Voltage Rating:	-
