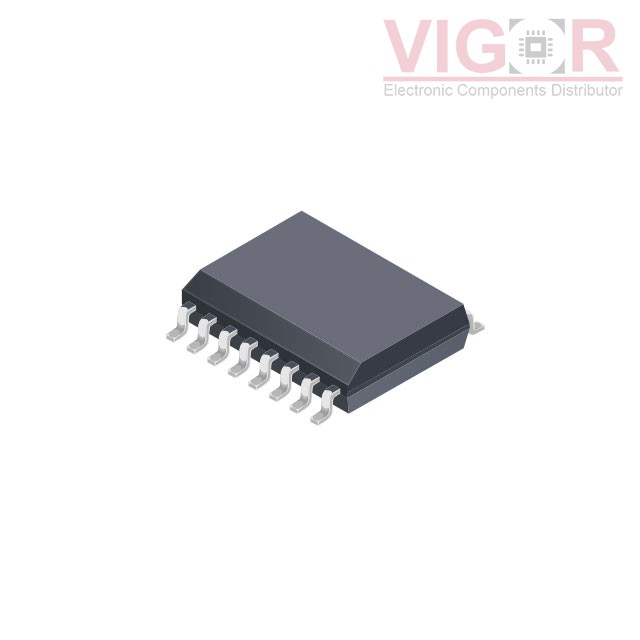

ACS710KLATR-25CB-NL-T

Part No :: ACS710KLATR-25CB-NL-T

Manufacturer: Allegro MicroSystems

VIGOR # :: 3521109

Description: SENSOR CURRENT HALL 25A AC/DC

Catalog: Current Sensors

DataSheet: ACS710KLATR-25CB-NL-T PDF

Country of origin: -

Date code: -

ACS710KLATR-25CB-NL-T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Open Loop
Current - Sensing:	25A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	28mV/A
Frequency:	DC ~ 120kHz
Linearity:	±0.75%
Accuracy:	±2.9%
Voltage - Supply:	3V ~ 5.5V
Response Time:	4µs
Current - Supply (Max):	14.5mA
Operating Temperature:	-40°C ~ 125°C
Polarization:	Bidirectional
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1948

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.93~~	~~$4.93~~
3000	~~$2.03~~	~~$6 090.00~~

Current price of ACS710KLATR-25CB-NL-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
