NV6115

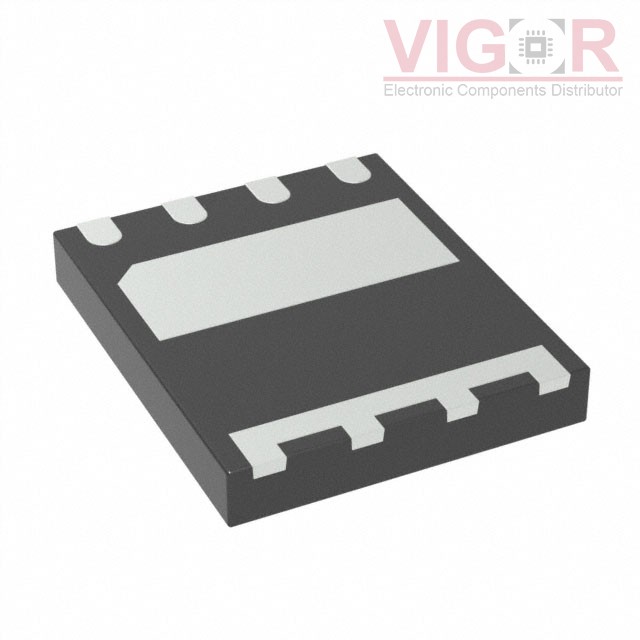

Image is for reference,
please contact us to get the real picture

Part No :: NV6115

Manufacturer: Navitas Semiconductor

Description: IC PWR GANFAST N-CH 5X6 8QFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: NV6115 PDF

Availability: 947 pieces

Unit Price: ~~$1.98000~~

Current price of NV6115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NV6115 Specifications

Type	Description
Series:	GaNFast™
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side or Low Side
Output Type:	N-Channel
Interface:	PWM
Voltage - Load:	520V (Max)
Voltage - Supply (Vcc/Vdd):	10V ~ 24V
Current - Output (Max):	8A
Rds On (Typ):	170mOhm
Input Type:	Non-Inverting
Features:	-
Fault Protection:	-
Operating Temperature:	-40°C ~ 125°C (TC)
Mounting Type:	Surface Mount
Supplier Device Package:	8-QFN (5x6)
Package / Case:	8-PowerVDFN
