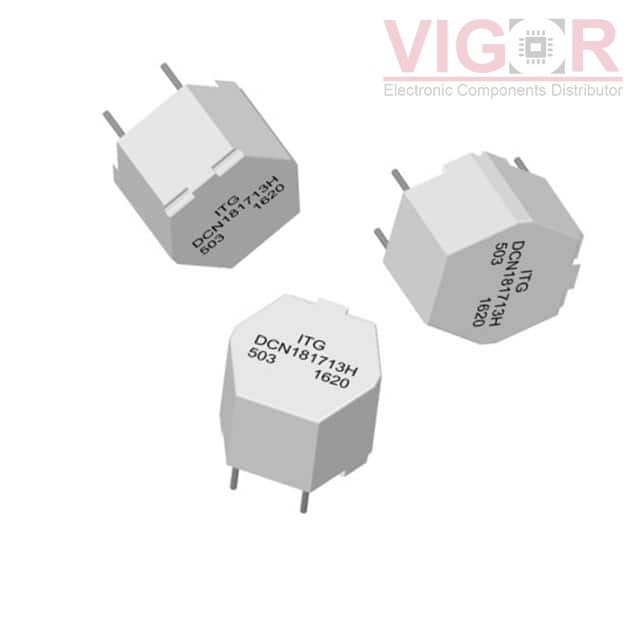

DCN181713H-273HF

Image is for reference,
please contact us to get the real picture

Part No :: DCN181713H-273HF

Manufacturer: ITG Electronics, Inc.

Description: CMC 27MH 1.1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: DCN181713H-273HF PDF

Availability: 48 pieces

Unit Price: ~~$6.00000~~

Current price of DCN181713H-273HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DCN181713H-273HF Specifications

Type	Description
Series:	DCN181713H
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	27 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.1A
DC Resistance (DCR) (Max):	410mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.709" L x 0.689" W (18.00mm x 17.50mm)
Height (Max):	0.512" (13.00mm)
Package / Case:	Horizontal, 4 PC Pin
