CM422SG102NB

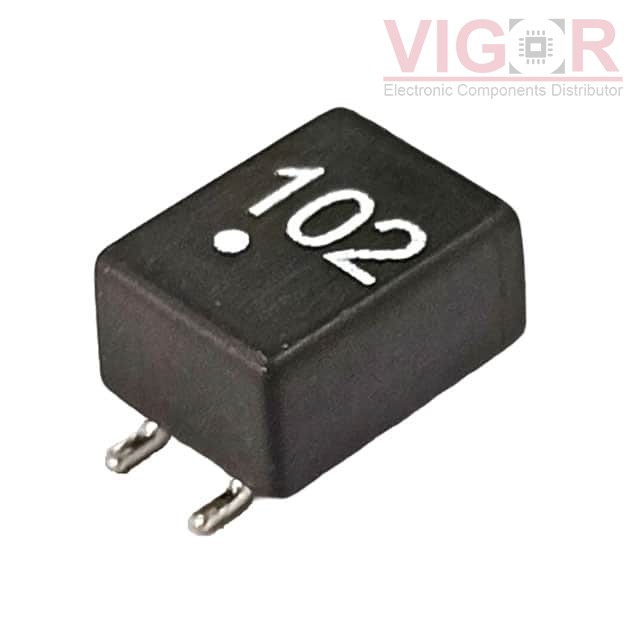

Image is for reference,
please contact us to get the real picture

Part No :: CM422SG102NB

Manufacturer: Mentech Technology USA Inc.

Description: CMC 1 MH 500MA 2LN SMD

Catalog: Common Mode Chokes

DataSheet: CM422SG102NB PDF

Availability: 1000 pieces

Unit Price: ~~$2.05000~~

Current price of CM422SG102NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CM422SG102NB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.374" L x 0.252" W (9.50mm x 6.40mm)
Height (Max):	0.220" (5.60mm)
Package / Case:	-

Please confirm the specifications of the products when ordering.
