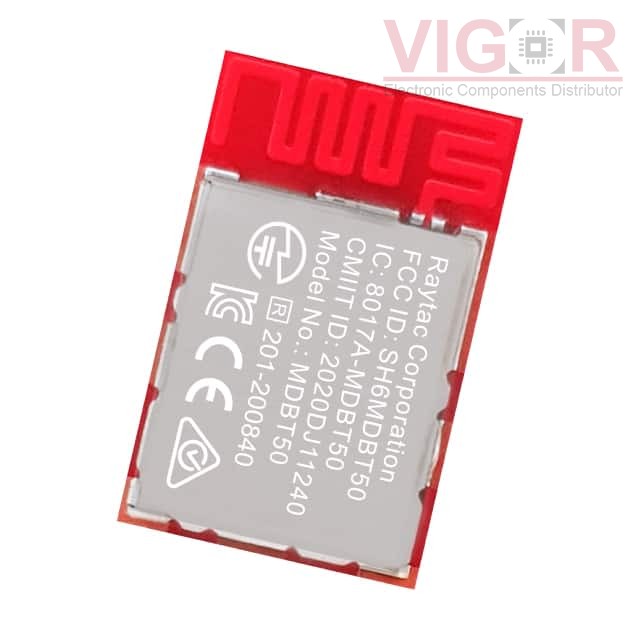

MDBT50-P256R

Part No :: MDBT50-P256R

Manufacturer: Raytac

Description: NORDIC 52820 PCB ANTENNA MODULE

Catalog: RF Transceiver Modules and Modems

DataSheet: MDBT50-P256R PDF

Availability: 50 pieces

Current price of MDBT50-P256R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MDBT50-P256R Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
RF Family/Standard:	802.15.4, Bluetooth
Protocol:	Bluetooth v5.1, Thread, Zigbee®
Modulation:	-
Frequency:	2.36GHz ~ 2.5GHz
Data Rate:	2Mbps
Power - Output:	8dBm
Sensitivity:	-103dBm
Serial Interfaces:	GPIO, I²C, SPI, UART, USB
Antenna Type:	PCB Trace
Utilized IC / Part:	nRF52820
Memory Size:	32kB Flash, 4kB RAM
Voltage - Supply:	1.7V ~ 3.6V
Current - Receiving:	3.4mA ~ 10.9mA
Current - Transmitting:	2.3mA ~ 30mA
Mounting Type:	Surface Mount
Operating Temperature:	-40°C ~ 85°C (TA)
Package / Case:	31-SMD Module
