NN01-103

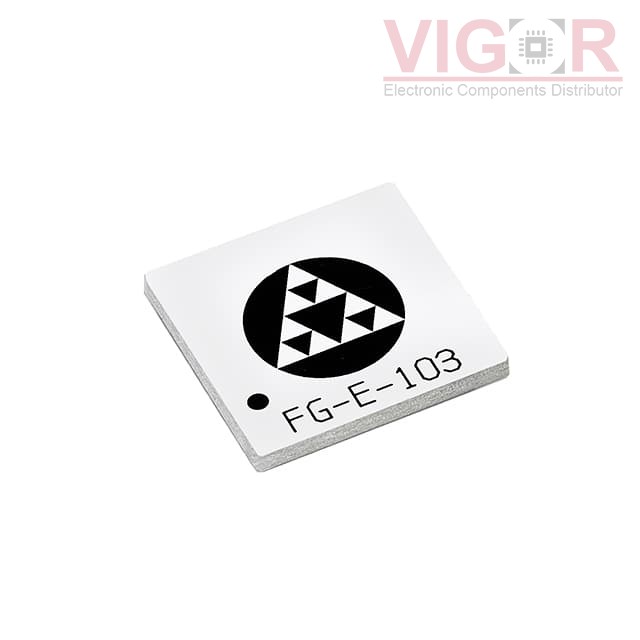

Image is for reference,
please contact us to get the real picture

Part No :: NN01-103

Manufacturer: Fractus Antennas S.L.

Description: GEOFIND - 103

Catalog: RF Antennas

DataSheet: NN01-103 PDF

Availability: 641 pieces

Unit Price: ~~$3.53000~~

Current price of NN01-103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NN01-103 Specifications

Type	Description
Series:	Geofind™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.561GHz, 1.575GHz, 1.602GHz
Frequency Range:	1.598GHz ~ 1.606GHz
Antenna Type:	Chip
Number of Bands:	3
VSWR:	2
Return Loss:	-
Gain:	1.4dBi, 1.2dBi, 1.3dBi
Power - Max:	-
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.035" (0.90mm)
Applications:	Beidou, GLONASS, GPS

Please confirm the specifications of the products when ordering.
