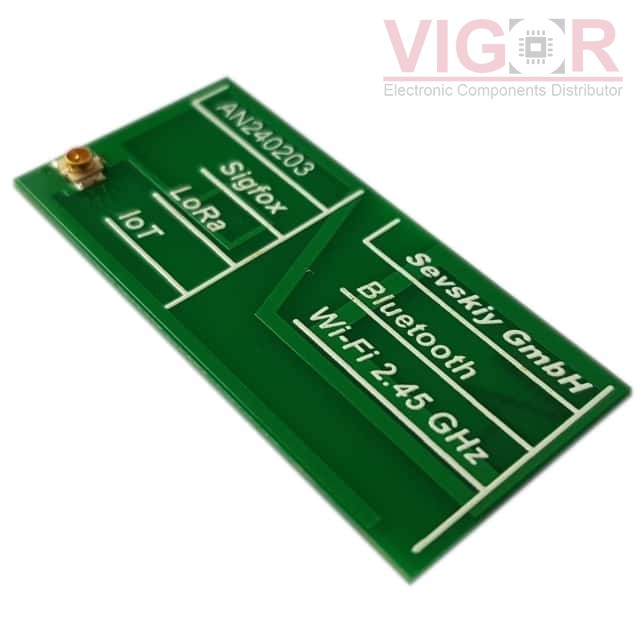

AN240203-01H

Part No :: AN240203-01H

Manufacturer: Sevskiy GmbH

VIGOR # :: 4072233

Description: RF ANT 915MHZ/2GHZ/2.45GHZ PCB

Catalog: RF Antennas

DataSheet: AN240203-01H PDF

Country of origin: -

Date code: -

AN240203-01H Specifications

Type	Description
Series:	AN240203
Package:	Bulk
Part Status:	Active
RF Family/Standard:	Bluetooth, Cellular, General ISM, WiFi
Frequency Group:	UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band):	868MHz, 915MHz, 2GHz, 2.45GHz
Frequency Range:	860MHz ~ 925MHz, 1.9GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz
Antenna Type:	PCB Trace
Number of Bands:	4
VSWR:	2, 3, 2, 3
Return Loss:	-10dB, -6dB, -6dB, -10dB
Gain:	1.1dBi, 1.3dBi, 2.3dBi, 4.2dBi
Power - Max:	10 W
Features:	-
Termination:	U.FL (UMCC), IPEX MHF1
Ingress Protection:	-
Mounting Type:	Connector Mount
Height (Max):	0.039" (1.00mm)
Applications:	3G, Bluetooth, Cellular, GSM, IoT, ISM, Lora, Sigfox, Wi-Fi

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 305

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.79~~	~~$2.79~~

Current price of AN240203-01H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
