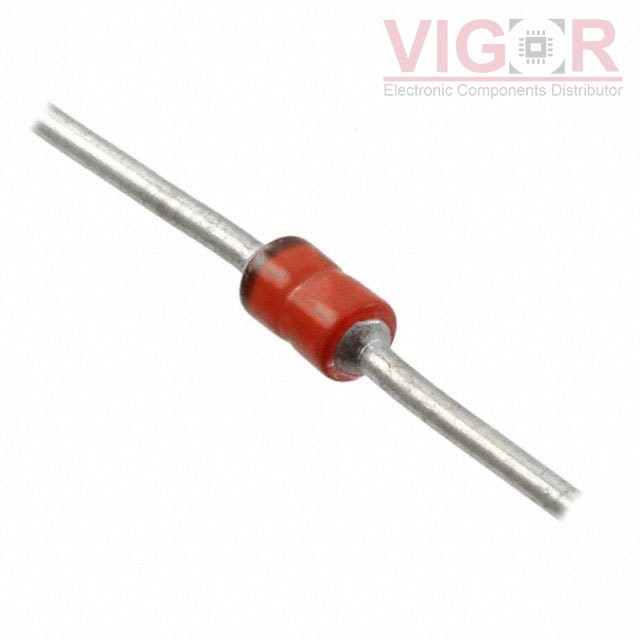

MAP5KE85AE3

Part No :: MAP5KE85AE3

Manufacturer: Microsemi

VIGOR # :: 4496095

Description: TVS DIODE 85V 137V DO204AL

Catalog: TVS - Diodes

DataSheet: MAP5KE85AE3 PDF

Country of origin: -

Date code: -

MAP5KE85AE3 Specifications

Type	Description
Series:	Military, MIL-PRF-19500
Package:	Bulk
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	85V
Voltage - Breakdown (Min):	94.4V
Voltage - Clamping (Max) @ Ipp:	137V
Current - Peak Pulse (10/1000µs):	3.6A
Power - Peak Pulse:	500W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-204AL, DO-41, Axial
Supplier Device Package:	DO-204AL (DO-41)
