GPA030A120I-FD

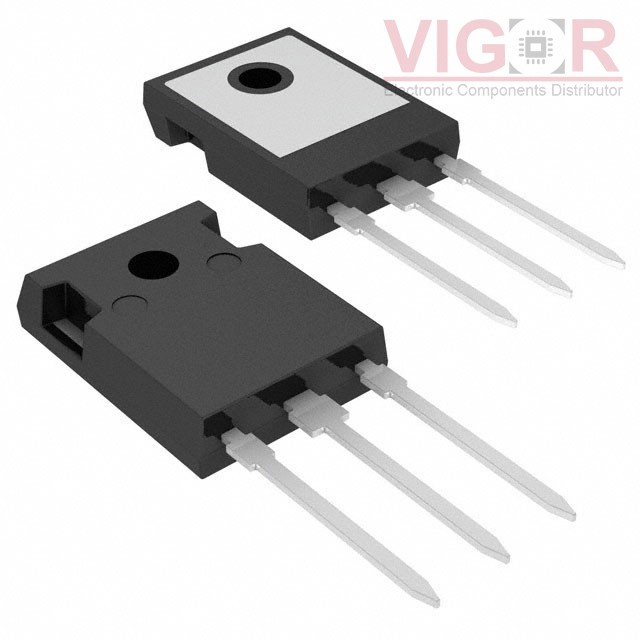

Image is for reference,
please contact us to get the real picture

Part No :: GPA030A120I-FD

Manufacturer: SemiQ

Description: IGBT 1200V 60A 329W TO247

Catalog: Transistors - IGBTs - Single

DataSheet: GPA030A120I-FD PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of GPA030A120I-FD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

GPA030A120I-FD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	90 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 30A
Power - Max:	329 W
Switching Energy:	4.5mJ (on), 850µJ (off)
Input Type:	Standard
Gate Charge:	330 nC
Td (on/off) @ 25°C:	40ns/245ns
Test Condition:	600V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):	450 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247

Please confirm the specifications of the products when ordering.
