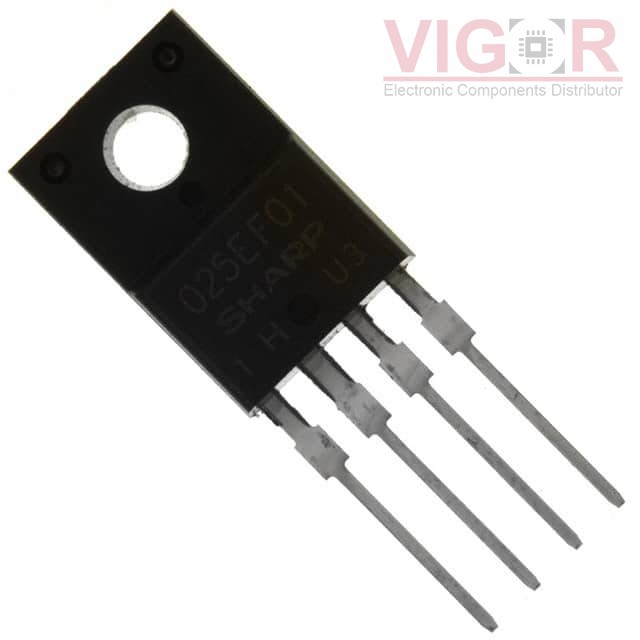

PQ025EF01SZH

Part No :: PQ025EF01SZH

Manufacturer: Sharp Microelectronics

VIGOR # :: 4867497

Description: IC REG LINEAR 2.5V 1A TO220-4

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: PQ025EF01SZH PDF

Country of origin: -

Date code: -

PQ025EF01SZH Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	10V
Voltage - Output (Min/Fixed):	2.5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1A
Current - Quiescent (Iq):	2 mA
Current - Supply (Max):	-
PSRR:	60dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	TO-220-4
Supplier Device Package:	TO-220-4

Alternative Products

Part Number	Manufacturer & Description	Compare
PQ033EF01SZH Match 100%	Sharp Microelectronics IC REG LINEAR 3.3V 1A TO220-4	PQ025EF01SZH vs PQ033EF01SZH
PQ015EF02SZH Match 50%	Sharp Microelectronics IC REG LINEAR 1.5V 2A TO220-4	PQ025EF01SZH vs PQ015EF02SZH
PQ033EF01SZ Match 100%	Sharp Microelectronics IC REG LINEAR 3.3V 1A TO220-4	PQ025EF01SZH vs PQ033EF01SZ
PQ025EF01SZ Match 100%	Sharp Microelectronics IC REG LINEAR 2.5V 1A TO220-4	PQ025EF01SZH vs PQ025EF01SZ
PQ018EF02SZH Match 50%	Sharp Microelectronics IC REG LINEAR 1.8V 2A TO220-4	PQ025EF01SZH vs PQ018EF02SZH
