SA01

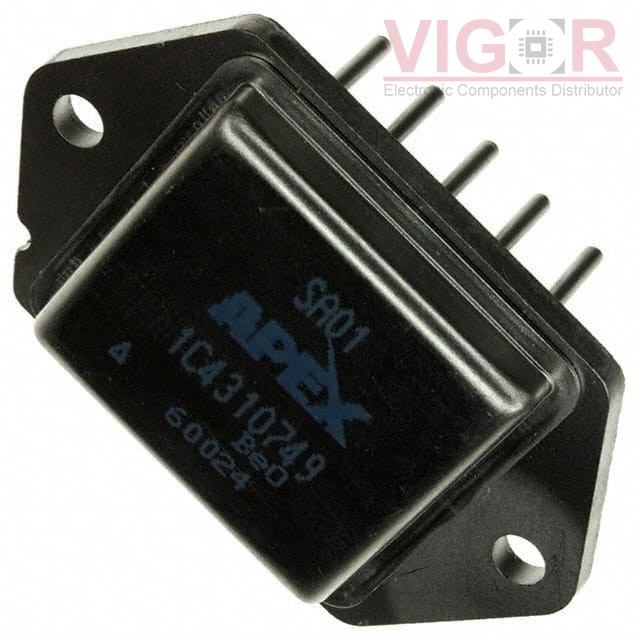

Image is for reference,
please contact us to get the real picture

Part No :: SA01

Manufacturer: Apex Microtechnology

Description: IC MOTOR DRIVER PAR 10POWERDIP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: SA01 PDF

Availability: 7485 pieces

Unit Price: ~~$0.00000~~

Current price of SA01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SA01 Specifications

Type	Description
Series:	Apex Precision Power®
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	250mOhm LS + HS
Current - Output / Channel:	20A
Current - Peak Output:	30A
Voltage - Supply:	16V ~ 100V
Voltage - Load:	16V ~ 100V
Operating Temperature:	-55°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Current Limiting, Over Temperature
Mounting Type:	Through Hole
Package / Case:	10-PowerDIP Module
Supplier Device Package:	10-PowerDip

Please confirm the specifications of the products when ordering.
