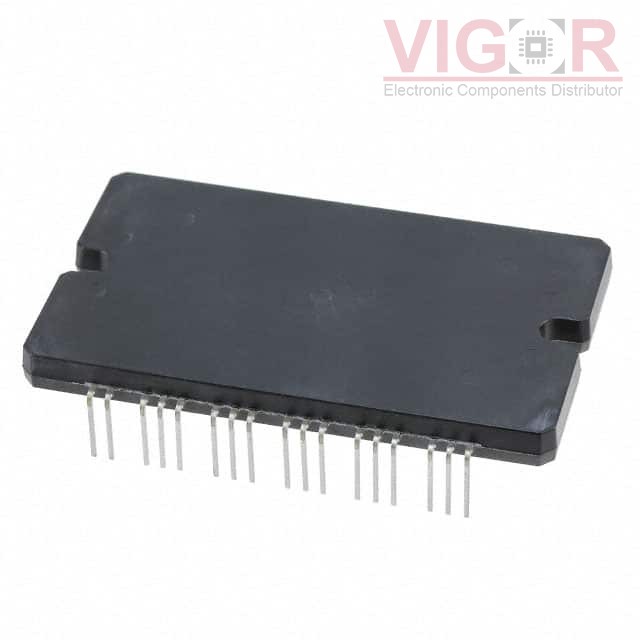

STK5F1U3E3D-E

Part No :: STK5F1U3E3D-E

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4920859

Description: IC IPM INVERTER 3PHASE 4DIP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: STK5F1U3E3D-E PDF

Country of origin: -

Date code: -

STK5F1U3E3D-E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge (3)
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	IGBT
Rds On (Typ):	-
Current - Output / Channel:	50A
Current - Peak Output:	76A
Voltage - Supply:	12.5V ~ 17.5V
Voltage - Load:	450V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit, Status Flag
Fault Protection:	Current Limiting, UVLO
Mounting Type:	Through Hole
Package / Case:	44-DIP Module, 37 Leads
Supplier Device Package:	Module
