SA110DP

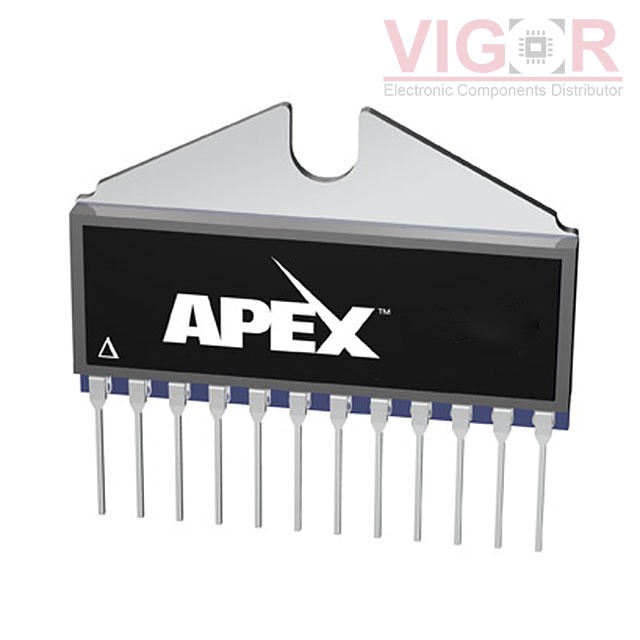

Image is for reference,
please contact us to get the real picture

Part No :: SA110DP

Manufacturer: Apex Microtechnology

Description: SWITCHING MODULE 400V 20A HALF H

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: SA110DP PDF

Availability: 3440 pieces

Unit Price: ~~$0.00000~~

Current price of SA110DP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SA110DP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Discontinued at Digi-Key
Output Configuration:	Half Bridge
Applications:	AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface:	Logic, PWM
Load Type:	Inductive
Technology:	MOSFET (Metal Oxide)
Rds On (Typ):	30mOhm LS, 73mOhm HS
Current - Output / Channel:	20A
Current - Peak Output:	40A
Voltage - Supply:	12V ~ 20V
Voltage - Load:	12V ~ 20V
Operating Temperature:	-40°C ~ 125°C (TC)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Through Hole
Package / Case:	12-PowerSIP
Supplier Device Package:	12-POWER SIP

Please confirm the specifications of the products when ordering.
