BTS7810KNTMA1

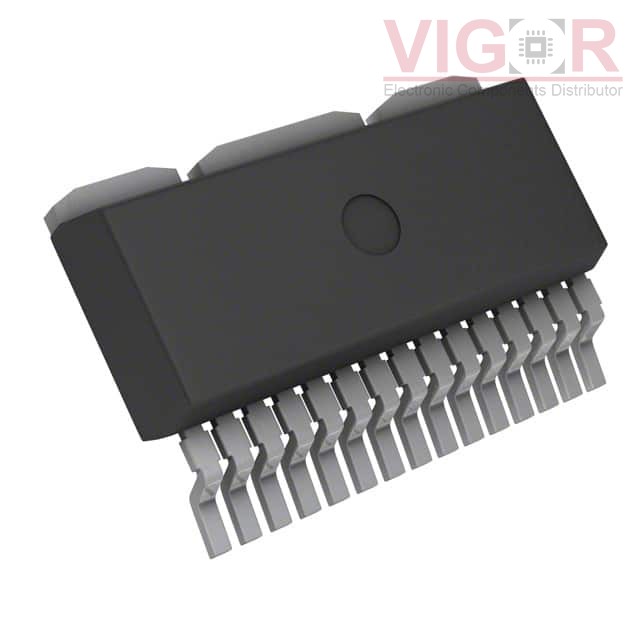

Image is for reference,
please contact us to get the real picture

Part No :: BTS7810KNTMA1

Manufacturer: IR (Infineon Technologies)

Description: IC BRIDGE DRIVER PAR TO263-15

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BTS7810KNTMA1 PDF

Availability: 4929 pieces

Unit Price: ~~$0.00000~~

Current price of BTS7810KNTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BTS7810KNTMA1 Specifications

Type	Description
Series:	TrilithIC™
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	14mOhm LS, 26mOhm HS
Current - Output / Channel:	-
Current - Peak Output:	42A
Voltage - Supply:	1.8V ~ 42V
Voltage - Load:	1.8V ~ 42V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Status Flag
Fault Protection:	Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	TO-263-18 (15 Leads + 3 Tabs)
Supplier Device Package:	P-TO263-15-1
