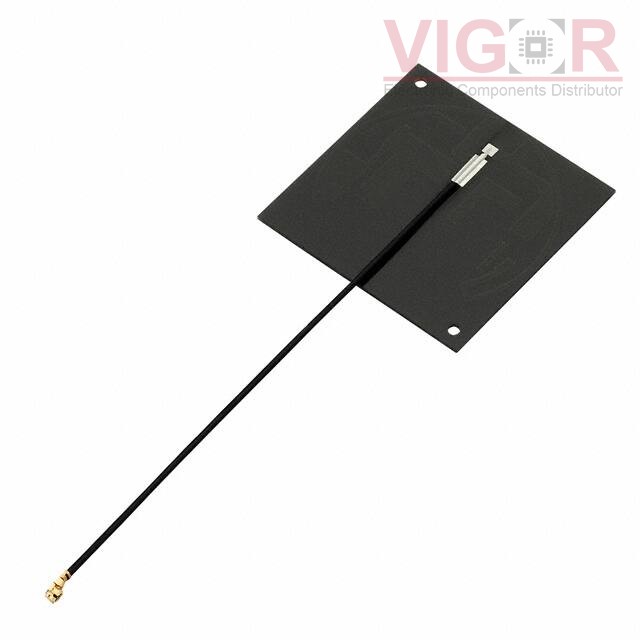

PC24.07.0100A

Part No :: PC24.07.0100A

Manufacturer: Taoglas

VIGOR # :: 4976533

Description: RF ANT 850MHZ/900MHZ FLAT PATCH

Catalog: RF Antennas

DataSheet: PC24.07.0100A PDF

Country of origin: -

Date code: -

PC24.07.0100A Specifications

Type	Description
Series:	TheStripe™
Package:	Bulk
Part Status:	Obsolete
RF Family/Standard:	Cellular, General ISM
Frequency Group:	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	850MHz, 900MHz, 1.8GHz, 1.9GHz
Frequency Range:	824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type:	Flat Patch
Number of Bands:	4
VSWR:	2
Return Loss:	-12dB, -25dB, -12dB, -10dB
Gain:	0dBi
Power - Max:	10 W
Features:	Cable - 100mm
Termination:	U.FL (UMCC), IPEX MHF1
Ingress Protection:	-
Mounting Type:	Chassis Mount
Height (Max):	0.031" (0.80mm)
Applications:	AMPS, DCS, GSM, PCS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PC24.07.0100A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
