0685H9200-01

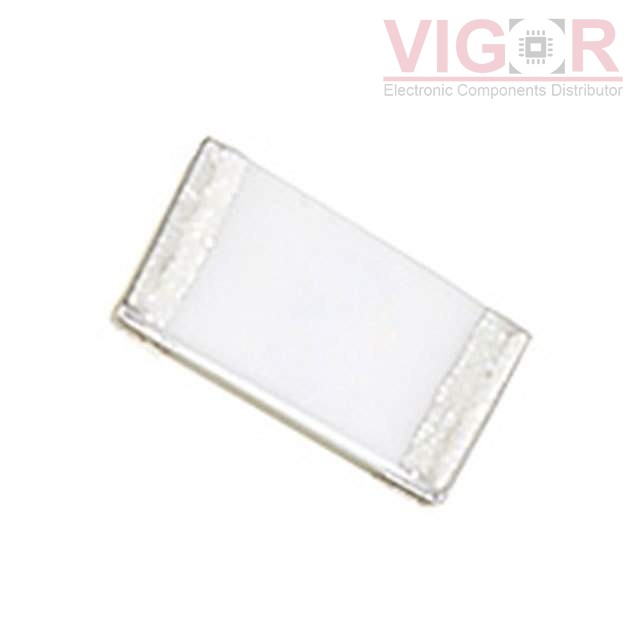

Image is for reference,
please contact us to get the real picture

Part No :

0685H9200-01

Manufacturer
Bel Fuse, Inc.
Description
FUSE BOARD MNT 20A 125VAC 32VDC
Catalog
Fuses
Shipped from
HK warehouse
Expected Shipping Date
Oct 10 - Oct 14 2025
DataSheet
0685H9200-01 PDF
Availability
32145 pieces
Unit Price
$0.29000

Current price of 0685H9200-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:C1H
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Mounting Type:Surface Mount
Fuse Type:Board Mount (Cartridge Style Excluded)
Current Rating (Amps):20 A
Voltage Rating - AC:125 V
Voltage Rating - DC:32 V
Response Time:Fast Blow
Package / Case:1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:150A AC, 300A DC
Melting I²t:28.5
Approval Agency:AEC-Q200, cURus
Operating Temperature:-55°C ~ 125°C
Color:-
Size / Dimension:0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)
