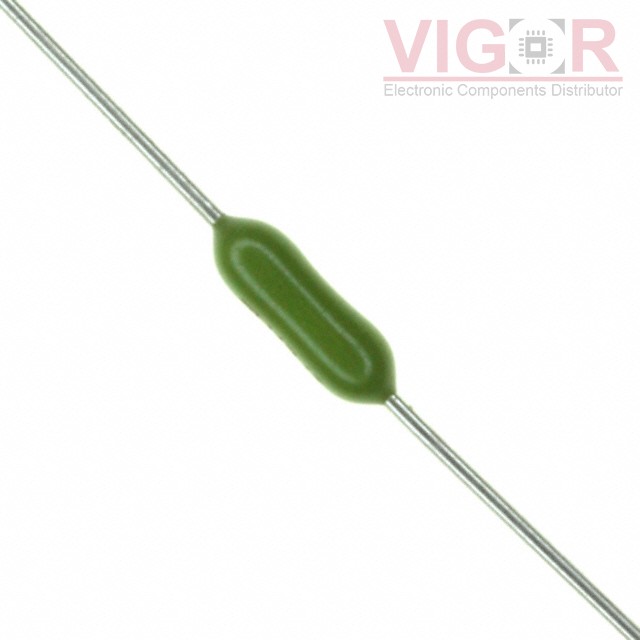

0316005.NAT1

Part No :: 0316005.NAT1

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 4482880

Description: FUSE BRD MNT 5A 125VAC/VDC AXIAL

Catalog: Fuses

DataSheet: 0316005.NAT1 PDF

Country of origin: -

Date code: -

0316005.NAT1 Specifications

Type	Description
Series:	PICO® II 316
Package:	Tape & Box (TB)
Part Status:	Obsolete
Mounting Type:	Through Hole
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	5 A
Voltage Rating - AC:	125 V
Voltage Rating - DC:	125 V
Response Time:	Fast Blow
Package / Case:	Axial
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	4.14
Approval Agency:	CCC
Operating Temperature:	-55°C ~ 125°C
Color:	-
Size / Dimension:	0.110" Dia x 0.280" L (2.80mm x 7.11mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 17 - Oct 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 0316005.NAT1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TR2/6125FA1.25A

FUSE BOARD MNT 1.25A 125VAC/VDC

04691.25WR

FUSE BOARD MNT 1.25A 63VDC 1206

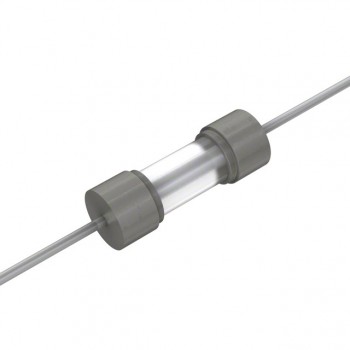

06763.15MXEP
