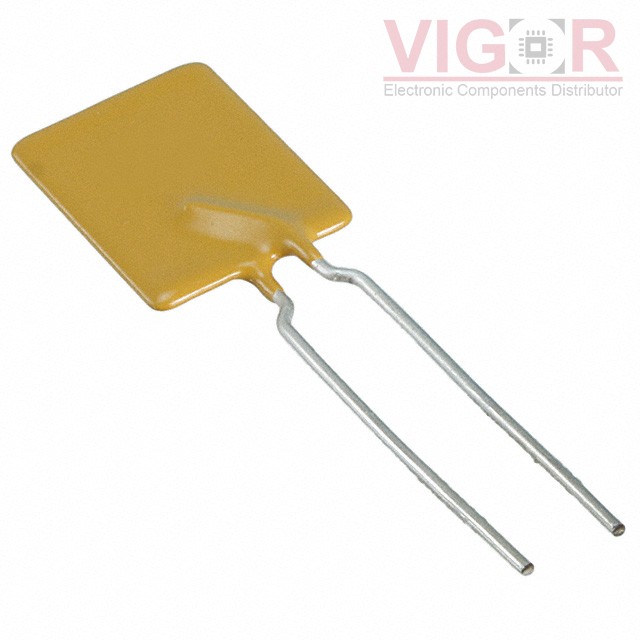

Part No :

AHRF750

Manufacturer
Wickmann / Littelfuse
VIGOR # :

1967035

Description
PTC RESET FUSE 16V 7.5A RADIAL
Catalog
PTC Resettable Fuses
DataSheet
AHRF750 PDF
Country of origin
-
Date code
-
ads
Type Description
Series:PolySwitch®, AHRF
Package:Bag
Part Status:Active
Type:Polymeric
Voltage - Max:16V
Current - Max:100 A
Current - Hold (Ih) (Max):7.5 A
Current - Trip (It):14.8 A
Time to Trip:8 s
Resistance - Initial (Ri) (Min):7.4 mOhms
Resistance - Post Trip (R1) (Max):22 mOhms
Resistance - 25°C (Typ):-
Operating Temperature:-40°C ~ 125°C
Ratings:AEC-Q200
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.551" L x 0.118" W (14.00mm x 3.00mm)
Height - Seated (Max):0.925" (23.50mm)
Thickness (Max):-
Lead Spacing:0.199" (5.05mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.00 $1.00
500 $1.00 $500.00

Current price of AHRF750 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

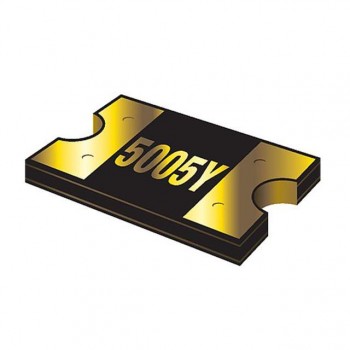

PFMF.110.16.2

PFMF.110.16.2

PTC RESET FUSE 16V 1.1A 1812

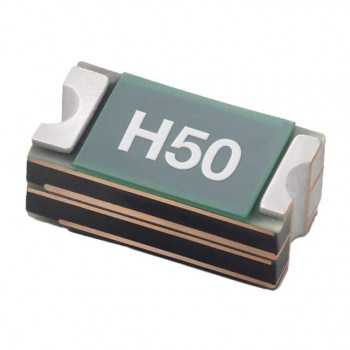

MINIASMDCH050F-2

MINIASMDCH050F-2

PTC RESET FUSE 0.50A 30V 1812

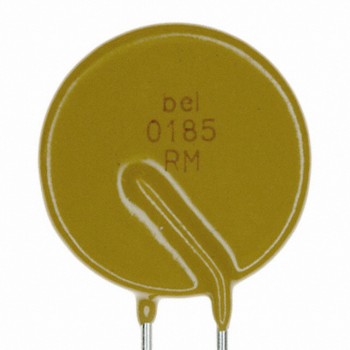

0ZRM0185FF1A
