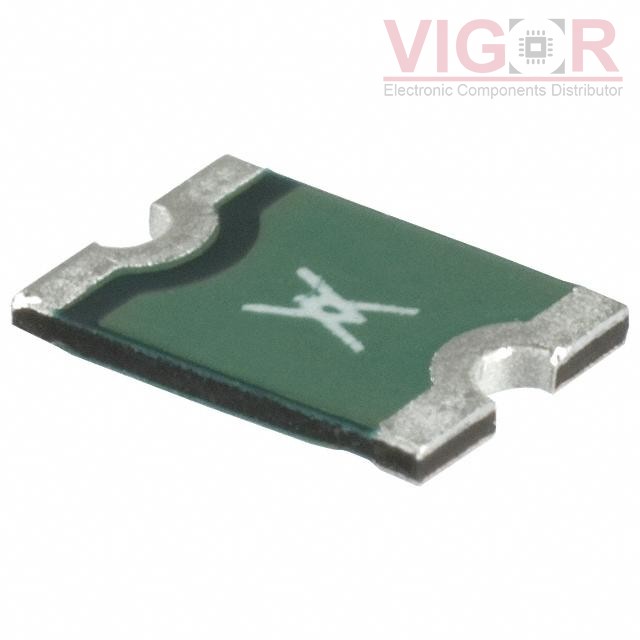

MINIASMDC075F/24-2

Part No :: MINIASMDC075F/24-2

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 1967485

Description: PTC RESET FUSE 24V 750MA 1812

Catalog: PTC Resettable Fuses

DataSheet: MINIASMDC075F/24-2 PDF

Country of origin: -

Date code: -

MINIASMDC075F/24-2 Specifications

Type	Description
Series:	PolySwitch®, miniASMD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymeric
Voltage - Max:	24V
Current - Max:	40 A
Current - Hold (Ih) (Max):	750 mA
Current - Trip (It):	1.5 A
Time to Trip:	300 ms
Resistance - Initial (Ri) (Min):	90 mOhms
Resistance - Post Trip (R1) (Max):	290 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric), Concave
Size / Dimension:	0.181" L x 0.128" W (4.60mm x 3.24mm)
Height - Seated (Max):	-
Thickness (Max):	0.057" (1.46mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 556

Shipped from

HK warehouse

Expected Shipping Date

Oct 20 - Oct 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.7100~~	~~$0.71~~
1500	~~$0.3332~~	~~$499.80~~
3000	~~$0.3174~~	~~$952.14~~
7500	~~$0.3121~~	~~$2 340.75~~
10500	~~$0.3016~~	~~$3 166.38~~

Current price of MINIASMDC075F/24-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

NTE16005-ECG

PTC RESET FUSE 60V 400MA RADIAL

PTR030V0110-TR

PTC RESET FUSE 30V 1.1A RADIAL

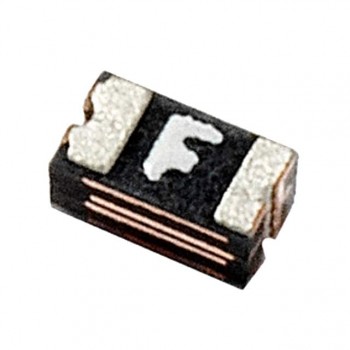

0603L200SL-VYR
