B59772B0120A070

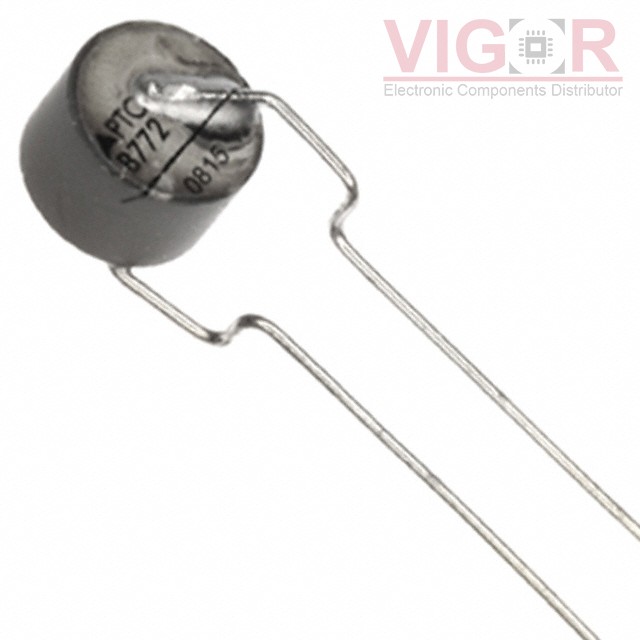

Product image
Product thumb
Part No :

B59772B0120A070

Manufacturer
TDK EPCOS
VIGOR # :

1968050

Description
PTC RESET FUSE 420V RADIAL DISC
Catalog
PTC Resettable Fuses
DataSheet
B59772B0120A070 PDF
Country of origin
-
Date code
-
ads
B59772B0120A070 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Type:Ceramic
Voltage - Max:420V
Current - Max:1.4 A
Current - Hold (Ih) (Max):-
Current - Trip (It):86 mA
Time to Trip:3 s
Resistance - Initial (Ri) (Min):-
Resistance - Post Trip (R1) (Max):-
Resistance - 25°C (Typ):150 Ohms
Operating Temperature:0°C ~ 60°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max):0.197" (5.00mm)
Thickness (Max):-
Lead Spacing:0.197" (5.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 755
Shipped from
HK warehouse
Expected Shipping Date
Apr 13 - Apr 17 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.5700 $2.57
5 $2.4424 $12.21
10 $2.1160 $21.16
25 $1.7255 $43.14
50 $1.5951 $79.75
100 $1.4648 $146.48
500 $1.3021 $651.04
1000 $1.1719 $1 171.87
5000 $1.1068 $5 533.80

Current price of B59772B0120A070 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
